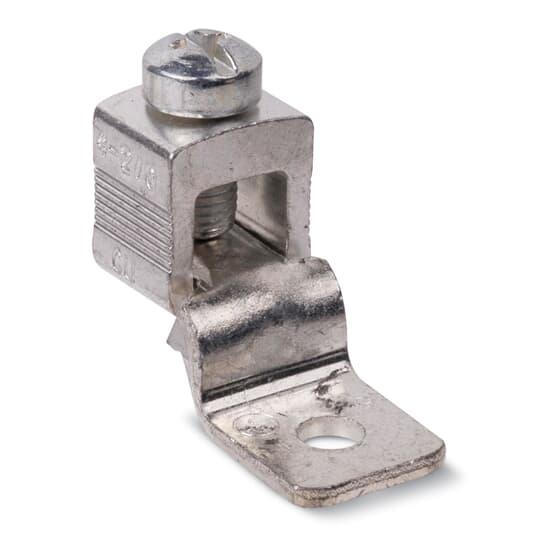

Thomas & Betts 35501 Blackburn Locktite Lug
Image Disclaimers Message
Thomas & Betts 35501 Blackburn Locktite Lug
Thomas & Betts 35501 Blackburn Locktite Lug
Part #:35501
SKU #: 38571
Key Features
Part #:35501
SKU #: 38571
Brand: Thomas & Betts
Conductor Size: 4 to 2/0, 4 to 2/0 AWG
Conductor Type: Copper
Mounting Hole Size: 3/8 in
Overall Length: 1-13/16, 1-13/16 in
Specifications: Aluminum Tin Plated Finish
- Double laps at top give greater thread strength and lock screw when tightened
- Copper tongue makes a low resistance terminal
Thomas & Betts 35501 Blackburn Locktite Lug
Blackburn Locktite Lug, 1-Hole, Copper Conductor, 4 to 2/0 AWG Conductor, 1/4 in Stud, Offset Tongue, 0.8125 in L x 0.75 in W x 0.101 in THK Tongue, 1-13/16 in Overall Length, Specifications: Aluminum Tin Plated Finish, 3/8 in Mounting Hole, Copper
Additional Description: TB -35501 CONNECTOR, MECH. LUG
Catalog Description: Locktite One-Hole Lug, Offset Tongue, Aluminum Body, Copper Tongue, Conductor Range 4 to 2/0 AWG, 1/4 Inch Bolt, Aluminum Tin Plated
