Brand: Thomas & Betts

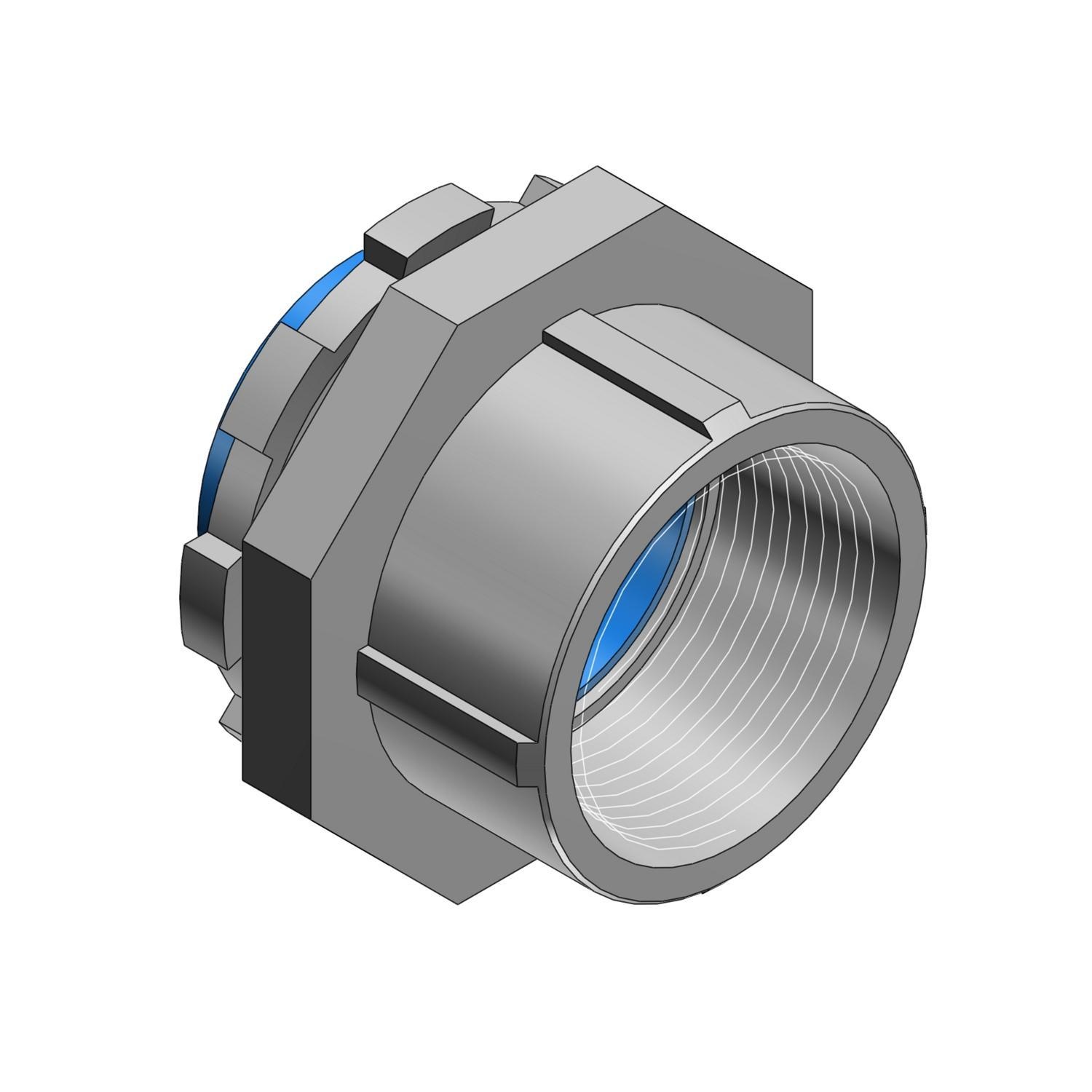

Thomas & Betts 372 Bullet Hub Connector
Image Disclaimers Message
Brand: Thomas & Betts
Thomas & Betts 372 Bullet Hub Connector
Brand: Thomas & Betts
Thomas & Betts 372 Bullet Hub Connector
Part #:372
SKU #: 191403
$21.94/EA
Key Features
Part #:372
SKU #: 191403
Brand: Thomas & Betts
Finish: Electro Plated Zinc, Electro-Zinc Plated
Size: 1, 1 in
Suitable For Use With: Rigid/IMC Conduit, Rigid/IMC Conduits
Type: Threaded
Country of origin: US
$21.94/EA
49 In Stock
Ships in 1 Business Day
- Tapered internal threads for watertight/dusttight union
- Threads relieved to prevent bottoming of conduit, ensuring sound assembly
- Recessed sealing ring at box end, sealing ring captivated
- Hardened steel/malleable iron/copper-free aluminum locknuts designed to provide high quality ground continuity, extended reach of locknut permits clamping on thin boxes and enclosures
- Insulated throat, insulates conductors, prevents abrasion and thinning of conductor insulation, reduces wire pull effort
- When used with neoprene o-ring, provides watertight threaded hub on enclosures
- 105 deg C temperature
- 5/16 in THK maximum wall
- Rain tight, watertight and dusttight
- Nylon insulated
Specifications
Brand: Thomas & Betts
Finish: Electro Plated Zinc, Electro-Zinc Plated
Size: 1, 1 in
Suitable For Use With: Rigid/IMC Conduit, Rigid/IMC Conduits
Type: Threaded
Country of origin: US
Material: Steel
Manufacturer Name: ABB
UNSPSC: 39121311
UPC: 00786210003726
Thomas & Betts 372 Bullet Hub Connector
T&B Bullet Hub Connector, Threaded, 1 in, For Use With: Rigid/IMC Conduits, Steel, Electro-Zinc Plated
Additional Description: TB -372 1 INCH INSUL BULLET CONDUIT HUB
Catalog Description: 1 Inch Hub Connector, Steel Electro Zinc Plated, Nylon Insulated for Use with Rigid/IMC Conduit
Item FeaturesFor use to connect threaded metal conduit to a threadless opening in a box or enclosure
Item Features
Item FeaturesANSI C80.4|ANSI NFPA 70-2008|CSA C22.2 File No. 18.3|Federal Specification H-28|Federal Specification W-F-408|JIC EGP1|JIC EMP1|NEMA FB-1|UL 514B|UL File No. E23018
