Brand: Thomas & Betts
Thomas & Betts 3744X
Part Number # 3744X
SKU # 2464115
Brand: Thomas & Betts
3744X
Thomas & Betts 3744X
Part Number # 3744X
SKU # 2464115
$2543.46 / Each
Typical price:$3408.24 / Each
Thomas & Betts 3744X Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 3744X |
| SKU #: | 2464115 |
| Amperage Rating: | 10 A |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 203 deg F |
| Terminal Type: | Screw |
| Country of origin: | US |
| Material: | Die Cast Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121404 |
| UPC: | 00708917187813 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2543.46 / Each
Typical price:$3408.24 / Each
Quantity:

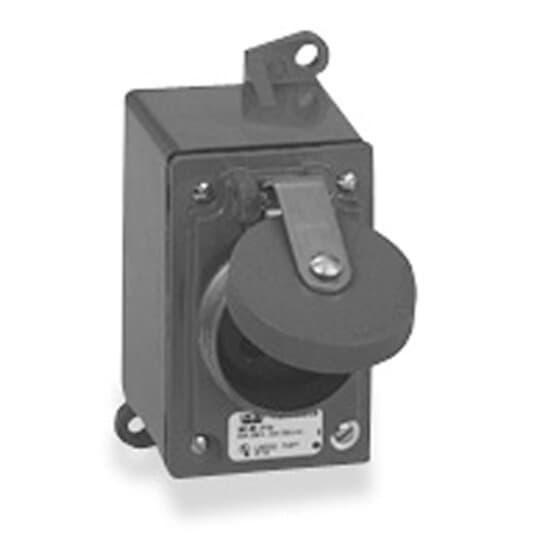

- Russellstoll FS/FD Pin and Sleeve Receptacle, 600 VAC, 10 A, 3 Pole, 4 Wires, -40 to 203 deg F, Screw Terminal, Die Cast Aluminum
3744X Application
For lower amperage marine and rough service applications3744X Item Features
- Precision made, self-aligning and self-wiping contacts
- Solderless screw terminals for convenient wiring
- Factory polarized interiors permit mating of same voltage/same type devices through configured ground pins and housing features
- Shell grounding by means of ground strap integral with ground contact for assured assembly safety
- Constructed of copper-free cast aluminum
- Rugged die cast aluminum housings and epoxy powder coated finishes
- Without box
3744X Standards
CSA File No. LL14096|UL File No. E2630/E47956SKU #2464115Part Number #3744XUNSPSC39121404UPC00708917187813
Image provided may only be a representation of final product and may include optional equipment
