Brand: Thomas & Betts

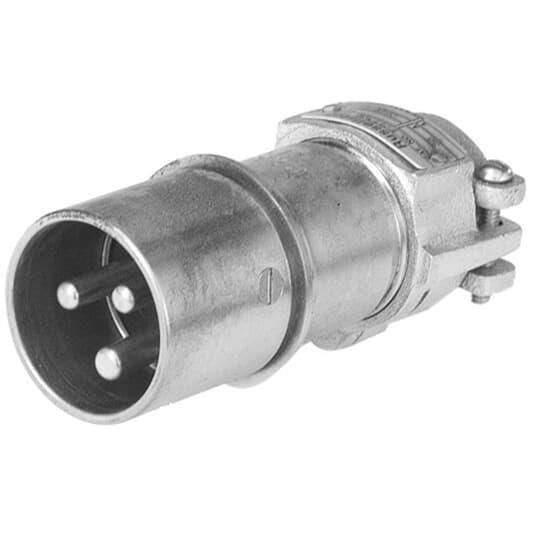

Thomas & Betts 3750 Russellstoll Male Plug
Image Disclaimers Message
Brand: Thomas & Betts
Thomas & Betts 3750 Russellstoll Male Plug
Brand: Thomas & Betts
Thomas & Betts 3750 Russellstoll Male Plug
Part #:3750
SKU #: 2257925
$1014.43/EA
Key Features
Part #:3750
SKU #: 2257925
Brand: Thomas & Betts
Amperage Rating: 30, 30 A
Dimensions: 2-1/4 in W x 3-3/4 in D
Frequency Rating: 60, 60 Hz
Number of Poles: 2
Number of Wires: 3
$1014.43/EA
- Precision made, self-aligning and self-wiping contacts
- Receptacles provided with spring actuated, self-closing flaps
- Solderless screw terminals for convenient wiring
- Mechanical linkage prevents plug insertion or withdrawal unless switch is in off position, circuit breaker protection available on many models, ground contacts are make first, break last
- Designed for lower amperage marine and rough service applications with rugged die cast aluminum housings and epoxy powder coated finishes
- FS/FD metallic connections system
- External cable clamp
- Contact carrier interior is thermoset
- Cast aluminum or brass for housing, gland nuts, screw collar rings
- 0.7 in ID standard bushing
Specifications
Brand: Thomas & Betts
Amperage Rating: 30, 30 A
Dimensions: 2-1/4 in W x 3-3/4 in D
Frequency Rating: 60, 60 Hz
Number of Poles: 2
Number of Wires: 3
Terminal Type: Screw
Type: Type FS/FD
Voltage Rating: 250, 250 VAC
Country of origin: MX
Material: Cast Aluminum/Thermoset
Manufacturer Name: ABB
UNSPSC: 39121402
UPC: 00708917146988
Thomas & Betts 3750 Russellstoll Male Plug
Russellstoll Male Plug, Type FS/FD, 250 VAC, 30 A, 60 Hz Frequency, 2 Pole, 3 Wires, Screw Terminal, Cast Aluminum/Thermoset, 2-1/4 in W x 3-3/4 in D Dimensions
Additional Description: TB -3750 (N) 30A,PLG,2P3W,FD,250VAC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: FS/FD Metallic Connection- 30 Amp, 250VAC, Aluminum Male Plug, 2 Pole 3 Wire
Item FeaturesFor lower amperage marine and rough service applications with rugged die cast aluminum housings and epoxy powder coated finishes
Item Features
Item FeaturesUL File No. E2630|UL File No. E47914|CSA File No. LR14096
