Brand: Thomas & Betts
375ESA-27

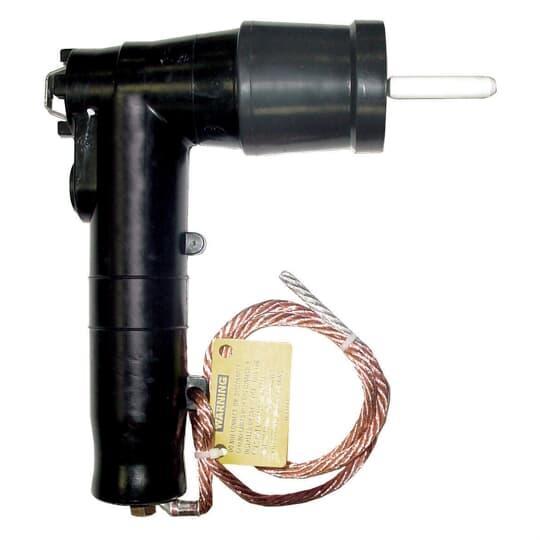

Thomas & Betts 375ESA-27 Elastimold Elbow Surge Arrester
Part Number # 375ESA-27
SKU # 2316269
$1062.82 / Each
Typical price:$1424.18 / Each
Thomas & Betts 375ESA-27 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 375ESA-27 |
| SKU #: | 2316269 |
| Amperage Rating: | 200, 200 A |
| Duty Cycle Voltage: | 27, 27 kV |
| Series: | 375ESA |
| Surge protection Voltage: | 22 kV RMS MCOV |
| Type: | Insulated Shielded |
| Country of origin: | US |
| Material: | EPDM Rubber |
| Operating voltage: | 35, 35 kV |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121634 |
| UPC: | 00783786660698 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1062.82 / Each
Typical price:$1424.18 / Each
Quantity:
- Elastimold Elbow Surge Arrester, Insulated Shielded, Series: 375ESA, 35 kV Operating, 27 kV Duty Cycle, 124.5 kV Maximum Discharge, 22 kV RMS MCOV Surge Protection, 200 A, EPDM Rubber
375ESA-27 Application
For providing high voltage lightning and switching surge protection of transformers, cable, equipment and other components typically located on underground power distribution systems375ESA-27 Item Features
- EPDM rubber construction - fully shielded and fully submersible for a variety of applications
- Compact size enables installation in your existing cabinetry, saving you money
- 4 AWG ground lead tethered to the jacket withstands 10000 A for 10 cycles without fusing
- Ground lead also controls end plug when ejected, preventing uncontrolled trajectory and maintains the housing shield ground connection after failure
- 87.5 kV at 1.5 kA/93 kV at 3 kA/99 kV at 5 kA/110 kV at 10 kA/124.5 kV at 20 kA maximum discharge voltage
- IEEE 386 interfaces provide convenient energized connection with other 200 A loadbreak or deadbreak components
