Part Number # 40HPS
SKU # 2353356
Image Disclaimers Message
40HPS

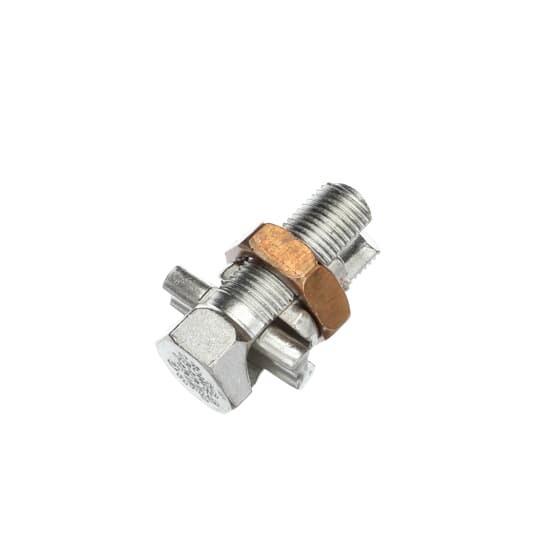

Thomas & Betts 40HPS Blackburn Split Bolt Connector
Part Number # 40HPS
SKU # 2353356
Thomas & Betts 40HPS Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 40HPS |
| SKU #: | 2353356 |
| Conductor Size: | 4 to 4/0, 4 to 4/0 AWG |
| Conductor Type: | ACSR/Solid/Stranded Aluminum/Copper |
| Finish: | Electro-Plated Tin |
| Specifications: | 0.58 in Split, 1-5/16 in Hex Nut |
| Type: | Type HPS |
| Color: | Metallic |
| Country of origin: | MX |
| Material: | Copper Alloy |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121408 |
| UPC: | 00783786200481 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 40HPS Blackburn Split Bolt Connector
Brand: Thomas & Betts
Part Number: 40HPS
Blackburn Split Bolt Connector, Type HPS, ACSR/Solid/Stranded Aluminum/Copper Conductor, 4 to 4/0 AWG Conductor, 1 x 2-15/32 in Bolt, 0.58 in Split, 1-5/16 in Hex Nut, Copper Alloy, Electro-Plated Tin, Metallic
Additional Description: TB -40HPS SPLIT - BOLT CONNECTOR 4/0 - 4 AWG
Catalog Description: Type HPS - Split-Bolt Connector with Spacer, Conductor Range for Equal Main and Tap ACSR 4/0-4, Conductor Range for Equal Main and Tap 4/0 Str-4 Str, Min Tap with One Max Main 4 Sol, Tin Plated
40HPS Application
For splicing, tapping or terminating conductors in power and grounding electrical connection40HPS Item Features
- Bolt and pressure bar of copper alloy, completely tin plated for corrosion resistance
- Contoured spacer of electrolytic copper
- Tin plated finish provides resistance to corrosion
- Blackburn contax recommended when used on aluminum conductors
- 4/0 to 4 AWG for ACSR conductor range equal main and tap
- 4 AWG solid conductor range min tap with one max main
- 4/0 AWG stranded to 4 AWG solid conductor range for equal main and tap
- 25 Pieces/Pack
40HPS Standards
UL File No. E9809|CSA CertifiedSKU #2353356Part Number #40HPSUNSPSC39121408UPC00783786200481
