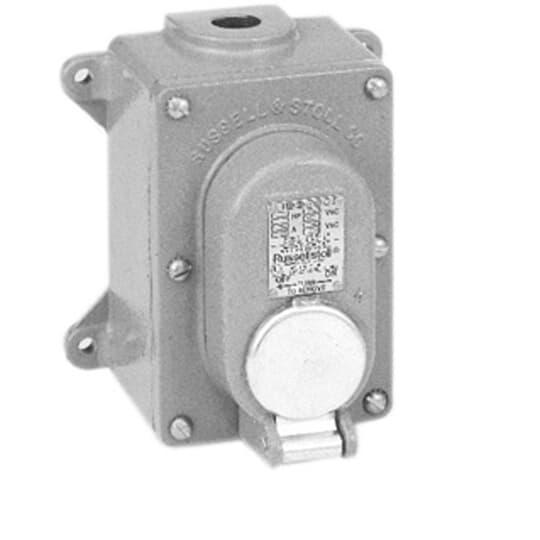

Thomas & Betts 4242FC Russellstoll Interlocking Receptacle
Part Number # 4242FC
SKU # 2418605
4242FC
Thomas & Betts 4242FC Russellstoll Interlocking Receptacle
Part Number # 4242FC
SKU # 2418605
Thomas & Betts 4242FC Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 4242FC |
| SKU #: | 2418605 |
| Dimensions: | 5-3/4 in W x 6-1/2 in D |
| Type: | Explosionproof Dust/Ignitionproof |
| UNSPSC: | 39121404 |
| UPC: | 00708917137382 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 4242FC Russellstoll Interlocking Receptacle
Brand: Thomas & Betts
Part Number: 4242FC
Russellstoll Interlocking Receptacle, Explosionproof Dust/Ignitionproof, 110/575 VAC, 30 A, 2 hp, 60 Hz Frequency, 3 Pole, 4 Wires, Cast Aluminum, 5-3/4 in W x 6-1/2 in D Dimensions
Additional Description: TB -4242FC (N) INTERLOCK XP SW&RCPT 3W NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Interlocked Receptacle, 3 Pole 4 Wire, 2HP 110/575VAC, 3/4 Inch Bushing Hole ID, Flap Cap
4242FC Application
Hazardous Locations, Chemical Plants, Oil Refineries, Bulk Stations, Distilleries, Solvent Areas and Mills Applications4242FC Item Features
- With 3/4 in ID bushing
- A higher degree of safety is afforded by interlocking the plug with the switch, making it impossible to insert or withdraw the plug under load
4242FC Standards
UL E68085, E10919|CSA Certified|Class I, Groups C, D|Class II, Groups GSKU #2418605Part Number #4242FCUNSPSC39121404UPC00708917137382
Image provided may only be a representation of final product and may include optional equipment
