Part Number # 4970NM
SKU # 2280745
4970NM
Thomas & Betts 4970NM Ranger Liquidtight Cord Connector
Part Number # 4970NM
SKU # 2280745
Thomas & Betts 4970NM Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 4970NM |
| SKU #: | 2280745 |
| Angle: | 90, 90 deg |
| Cable Openings: | 1/8 to 3/8, 1/8 to 3/8 in |
| Temperature Rating (Degrees F): | -34 to 105, -34 to 105 deg C |
| Trade Size: | 3/4, 3/4 in |
| Type: | Liquidtight Strain Relief, Strain Relief |
| Cable type: | S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD |
| Connection type: | NPT |
| Country of origin: | US |
| Material: | Nylon 6.6/Polyamide |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121431 |
| UPC: | 00786210797526 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 4970NM Ranger Liquidtight Cord Connector
Brand: Thomas & Betts
Part Number: 4970NM
T&B Ranger Cord Connector, Liquidtight Strain Relief, 3/4 in, Cable Openings: 1/8 to 3/8 in, S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD Cable, NPT, 90 deg, Nylon 6.6/Polyamide, Black, -34 to 105 deg C
Additional Description: TB -4970NM (N) 3/4IN 90D LT RELIEFCONN .12-.37 PA6 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Liquidtight Strain Relief Connector, 90 Degree Bend, 3/4 Inch NPT Thread, Cable Range 0.125 Inch/3.2mm to 0.375 Inch/9.5mm, IP65 Rating, UV Resistant Polyamide 6.6 Body, Black
4970NM Application
For passing a cord cable into an enclosure through a bulkhead and ordinary, wet or dry locations4970NM Item Features
- Extended range with superior strain relief
- Reduced overall size, fits into tighter spaces
- Gland nut designed to restrict cable bending
- Nylon gland and grip, oil-resistant elastomer bushing
- IP65 rating, UV-resistant
- Non-metallic means corrosion-resistance
- 5/8 in L thread
- 0.79 in dia throat
4970NM Standards
Coast Guard CG293|CSA 52391|UL File No. E13938SKU #2280745Part Number #4970NMUNSPSC39121431UPC00786210797526

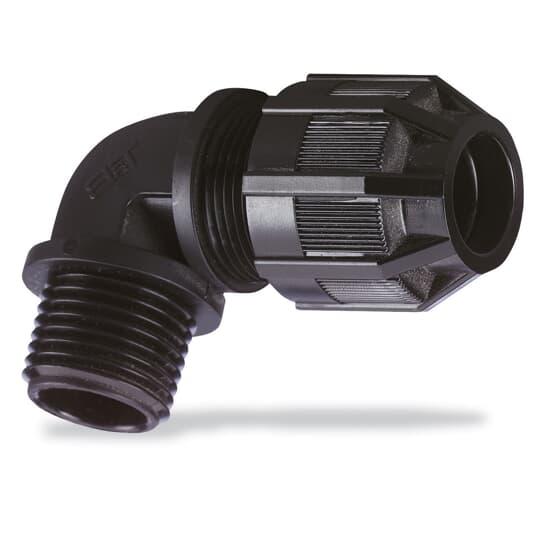

Image provided may only be a representation of final product and may include optional equipment
