Part Number # 4972NM
SKU # 38628
Image Disclaimers Message
4972NM

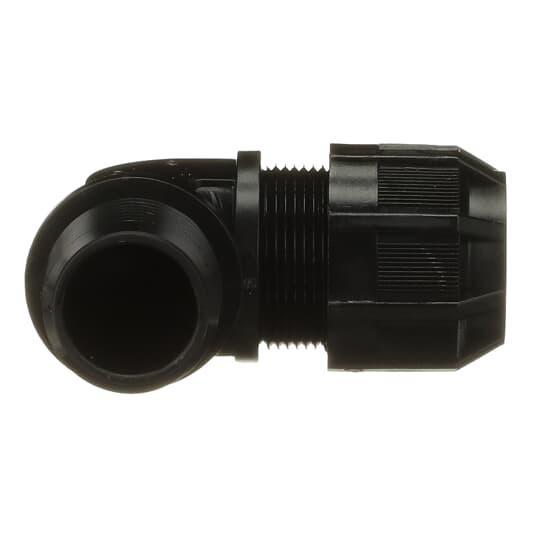

Thomas & Betts 4972NM Ranger Liquidtight Cord Connector
Part Number # 4972NM
SKU # 38628
$29.32 / Each
Typical price:$39.29 / Each
Thomas & Betts 4972NM Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 4972NM |
| SKU #: | 38628 |
| Angle: | 90, 90 deg |
| Cable Openings: | 1/2 to 3/4, 1/2 to 3/4 in |
| Temperature Rating (Degrees F): | -34 to 105, -34 to 105 deg C |
| Trade Size: | 3/4, 3/4 in |
| Type: | Liquidtight Strain Relief, Strain Relief |
| Cable type: | S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD |
| Color: | Black |
| Connection type: | NPT |
| Country of origin: | US |
| Material: | Nylon 6.6/Polyamide |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121431 |
| UPC: | 00786210797540 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$29.32 / Each
Typical price:$39.29 / Each
Quantity:
Thomas & Betts 4972NM Ranger Liquidtight Cord Connector
Brand: Thomas & Betts
Part Number: 4972NM
T&B Ranger Cord Connector, Liquidtight Strain Relief, 3/4 in, Cable Openings: 1/2 to 3/4 in, S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD Cable, NPT, 90 deg, Nylon 6.6/Polyamide, Black, -34 to 105 deg C
Additional Description: TB -4972NM 3/4 90 STR RLF CONNECTOR
Catalog Description: Liquidtight Strain Relief Connector, 90 Degree Bend, 3/4 Inch NPT Thread, Cable Range 0.500 Inch/12.7mm to 0.750 Inch/19.0mm, IP65 Rating, UV Resistant Polyamide 6.6 Body, Black
4972NM Application
For passing a cord cable into an enclosure through a bulkhead and ordinary, wet or dry locations4972NM Item Features
- Extended range with superior strain relief
- Reduced overall size, fits into tighter spaces
- Gland nut designed to restrict cable bending
- Nylon gland and grip, oil-resistant elastomer bushing
- IP65 rating, UV-resistant
- Non-metallic means corrosion-resistance
- 5/8 in L thread
- 0.79 in dia throat
4972NM Standards
Coast Guard CG293|CSA 52391|UL File No. E13938SKU #38628Part Number #4972NMUNSPSC39121431UPC00786210797540
