Brand: Thomas & Betts
500M

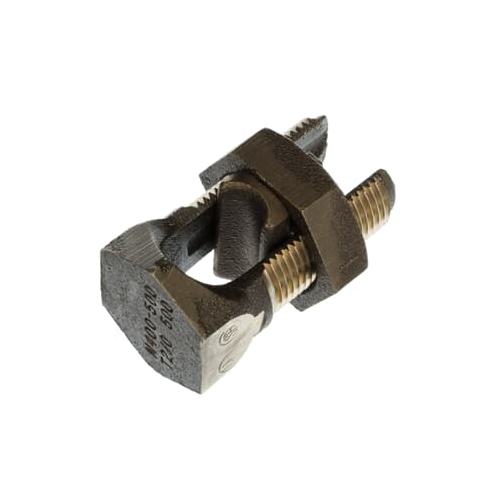

Thomas & Betts 500M Blackburn Split Bolt Connector
Part Number # 500M
SKU # 2167860
$90.24 / Each
Thomas & Betts 500M Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 500M |
| SKU #: | 2167860 |
| Conductor Size: | 400 to 500, 400 to 500 kcmil |
| Conductor Type: | Stranded Copper |
| Specifications: | 0.842 in Split, 1-7/8 in Hex Nut |
| Type: | Type H High Strength |
| Color: | Metallic |
| Country of origin: | MX |
| Material: | Bronze Alloy |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121408 |
| UPC: | 00783786855261 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$90.24 / Each
Quantity:
Thomas & Betts 500M Blackburn Split Bolt Connector
Brand: Thomas & Betts
Part Number: 500M
Blackburn Split Bolt Connector, Type H High Strength, Stranded Copper Conductor, 400 to 500 kcmil Conductor, 1-1/2 x 3-1/32 in Bolt, 0.842 in Split, 1-7/8 in Hex Nut, Bronze Alloy, Metallic
Additional Description: TB -500M H-STRNGTH SPLITBLT CONN 500-400
Catalog Description: Type H - High Strength Split-Bolt Connector, Conductor Range for Equal Main and Tap 500 kcmil-400 kcmil, Conductor Range for Min Tap with One Max Main 2/0 Str
500M Application
For splicing, tapping or terminating conductors in power and grounding electrical connection500M Item Features
- Bolt and nut of high-strength corrosion resistant bronze alloy
- Pressure bar is copper through 40H, copper alloy for 350 kcmil and above
- Bolt and nut of hex design up to 350 kcmil
- Split-bolt connector made of metallic bronze alloy for use on copper conductors
- 2/0 AWG stranded conductor range min tap with one max main
- 500 kcmil to 400 kcmil conductor range for equal main and tap
- 1 Piece/Pack
500M Standards
UL File No. E9809|CSA CertifiedSKU #2167860Part Number #500MUNSPSC39121408UPC00783786855261
