Part Number # 53106
SKU # 2454140
Image provided may only be a representation of
final product and may include optional equipment
53106

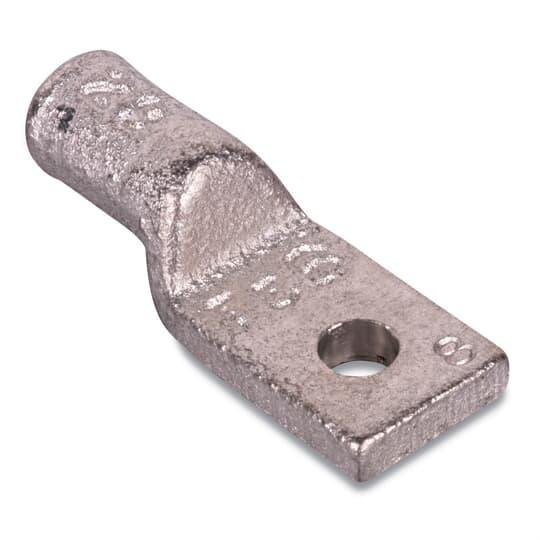

Thomas & Betts 53106
Part Number # 53106
SKU # 2454140
Thomas & Betts 53106 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 53106 |
| SKU #: | 2454140 |
| Barrel Type: | Blind End/Standard |
| Conductor Size: | 4 AWG |
| Conductor Type: | Copper |
| Mounting Hole Size: | 0.281 in |
| Overall Length: | 1-7/16 in |
| Specifications: | Tin Plated |
| Temperature Rating (Degrees F): | 105 deg C |
| Tongue Size: | 3/4 in L x 1/2 in W x 1/8 in THK |
| Tongue Type: | Straight |
| Type: | 1-Hole Heavy Duty Non-Insulated |
| Country of origin: | MX |
| Material: | Cast Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210531069 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 53106
Brand: Thomas & Betts
Part Number: 53106
Color-Keyed® Compression Lug, 1-Hole Heavy Duty, Copper Conductor, 4 AWG Conductor, Die Code: 29, 600 V to 35kV, 1/4 in Stud, Straight Tongue, 3/4 in L x 1/2 in W x 1/8 in THK Tongue, 1-7/16 in Overall Length, Blind End/Standard Barrel, 105 deg C, 0.281 in Mounting Hole, Copper, Gray
Additional Description: TB -53106 (N) CU TP 1HL LUG HD STD No4 1/4B GRY NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Copper One-Hole Lug - Heavy-Duty, Standard Barrel, Blind End, Max 35kV, Wire Size #4 AWG, 1/4 Inch Bolt Size, Tin Plated, Die Code 29, Die Color Code Gray
53106 Application
For providing a high degree of reliability in electrical wiring53106 Item Features
- Electro tin plated for corrosion resistance
- Chamfered barrels provide ease of strand entry and inspection hole facilitates full insertion of the conductor
- Cable area clearly identified on lug
- Round hole
53106 Standards
CSA Certified|UL File No. E9809SKU #2454140Part Number #53106UNSPSC39121405UPC00786210531069
