Part Number # 5332-HT
SKU # 2253950
Image Disclaimers Message
5332-HT

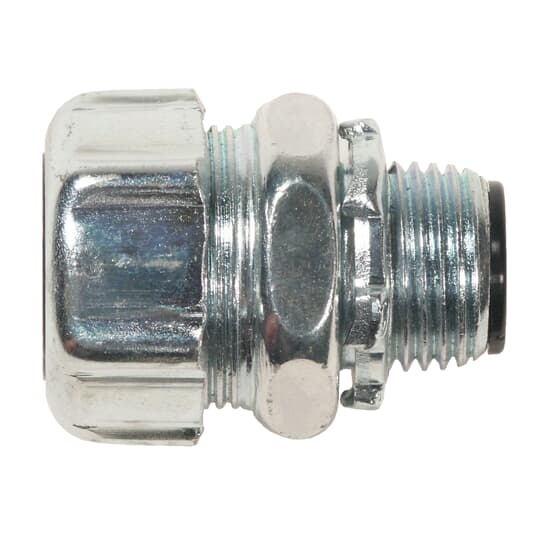

Thomas & Betts 5332-HT Liquidtight Conduit Connector
Part Number # 5332-HT
SKU # 2253950
$296.48 / 25Each
Typical price:$397.28 / Each
Thomas & Betts 5332-HT Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 5332-HT |
| SKU #: | 2253950 |
| Dimensions: | 1-9/16 in L x 1-3/8 in W |
| Finish: | Clear Chromate Coated/Zinc Plated, Zinc Plated/Clear Chromate Coated |
| Series: | 53 Series |
| Suitable For Use With: | Liquid Tight Flexible Metal Conduits, Liquidtight Flexible Metal Conduit |
| Trade Size: | 1/2, 1/2 in |
| Type: | High Temperature Insulated Straight |
| Country of origin: | US |
| Material: | Steel |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121420 |
| UPC: | 00786210909486 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$296.48 / 25Each
Typical price:$397.28 / Each
Quantity:
Thomas & Betts 5332-HT Liquidtight Conduit Connector
Brand: Thomas & Betts
Part Number: 5332-HT
T&B Conduit Connector, High Temperature Insulated Straight, Series: 53 Series, 1/2 in, For Use With: Liquid Tight Flexible Metal Conduits, Steel, Clear Chromate Coated/Zinc Plated, 1-9/16 in L x 1-3/8 in W
Additional Description: TB -5332-HT 1/2 INCH INSUL 150 DEG C LT FITTING
Catalog Description: 1/2 Inch Straight Steel Insulated Liquidtight High Temperature Connector
5332-HT Application
For applications where termination into a threaded opening is required the fitting shall have external tapered NPT threads and where termination into a threadless opening is required use an acceptable sealing ring5332-HT Item Features
- Double beveled sealing ring designed with 5 unique sealing mechanisms and cannot be installed backwards
- Sure-tight gland deflects water away from connector and prevents pooling of moisture
- Safe Edge ground cone provides superior bonding, stronger pull-out, easy threading and conductor protection
- Double plating for superior corrosion protection
- Heat curled insulator molded inside body provides excellent wire protection and easier glide of conductors through and into the fitting
- Where liquid tight flexible metal fittings are required in high temperature environments up to 150 deg C
- The fitting shall have a plastic throat insulator to protect conductors
- 9/16 in L thread
5332-HT Standards
UL 514BSKU #2253950Part Number #5332-HTUNSPSC39121420UPC00786210909486
