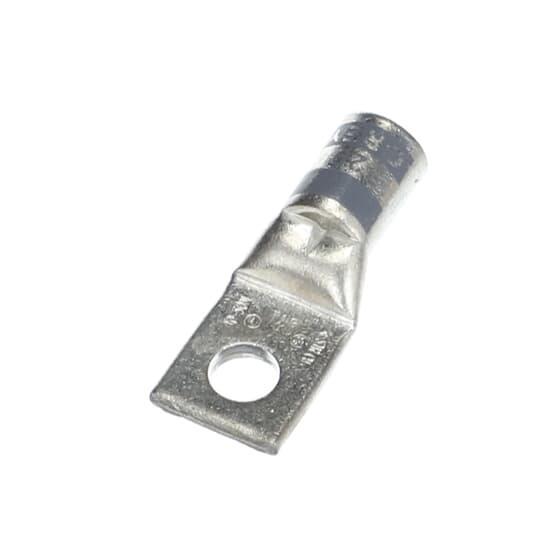

Thomas & Betts 54106 Color-Keyed Compression Lug
Part Number # 54106
SKU # 38754
Thomas & Betts 54106 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 54106 |
| SKU #: | 38754 |
| Barrel Size: | 0.37 in Dia |
| Barrel Type: | Standard |
| Conductor Size: | 4, 4 AWG |
| Conductor Type: | Copper |
| Mounting Hole Size: | 0.281, 0.281 in |
| Overall Length: | 1.38, 1.38 in |
| Series: | 54100 |
| Specifications: | Tin Plated |
| Tongue Size: | 0.6 in L x 0.55 in W x 0.09 in THK |
| Tongue Type: | Straight |
| Type: | 1-Hole, 1-Hole Non-Insulated |
| Color: | Gray |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210541068 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 54106 Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 54106
Color-Keyed Compression Lug, 1-Hole Non-Insulated, Series: 54100, Copper Conductor, 4 AWG Conductor, Die Code: 29, 35 kV, 1/4 in Stud, Straight Tongue, 0.6 in L x 0.55 in W x 0.09 in THK Tongue, 1.38 in Overall Length, Standard Barrel, 0.37 in Dia Barrel, Specifications: Tin Plated, 0.281 in Mounting Hole, Copper, Gray
Additional Description: TB -54106 No4 CU STD BRL. 1 HOLE.25 INCH BOLT GRAY LUG
Catalog Description: Copper One-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size #4 AWG, 1/4 Inch Bolt Size, Tin Plated, Die Code 29, Die Color Code Gray
54106 Application
For providing a high degree of reliability in electrical wiring54106 Item Features
- Peep hole
- High conductivity wrought copper construction
- Tin plated finish
54106 Standards
CSA Certified|UL File No. E9809SKU #38754Part Number #54106UNSPSC39121405UPC00786210541068
