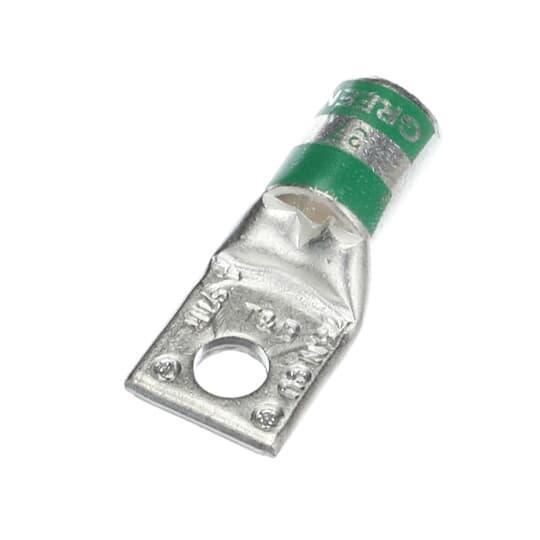

Thomas & Betts 54108 Color-Keyed Compression Lug
Part Number # 54108
SKU # 38756
Thomas & Betts 54108 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 54108 |
| SKU #: | 38756 |
| Barrel Size: | 0.47 in Dia |
| Barrel Type: | Standard |
| Conductor Size: | 1, 1 AWG |
| Conductor Type: | Copper |
| Mounting Hole Size: | 0.281, 0.281 in |
| Overall Length: | 1-1/2, 1-1/2 in |
| Series: | 54100 |
| Specifications: | Tin Plated |
| Tongue Size: | 0.65 in L x 0.68 in W x 0.11 in THK |
| Tongue Type: | Straight |
| Type: | 1-Hole, 1-Hole Non-Insulated |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210541082 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 54108 Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 54108
Color-Keyed Compression Lug, 1-Hole Non-Insulated, Series: 54100, Copper Conductor, 1 AWG Conductor, Die Code: 37, 35 kV, 1/4 in Stud, Straight Tongue, 0.65 in L x 0.68 in W x 0.11 in THK Tongue, 1-1/2 in Overall Length, Standard Barrel, 0.47 in Dia Barrel, Specifications: Tin Plated, 0.281 in Mounting Hole, Copper, Green
Additional Description: TB -54108 NO1 CU STD BRL. 1 HOLE.25 INCH BOLT 1/4" BOLT GREEN LUG
Catalog Description: Copper One-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size #1 AWG, 1/4 Inch Bolt Size, Tin Plated, Die Code 37, Die Color Code Green
54108 Application
For providing a high degree of reliability in electrical wiring54108 Item Features
- Peep hole
- High conductivity wrought copper construction
- Tin plated finish
54108 Standards
UL E9809 / UL E9809SKU #38756Part Number #54108UNSPSC39121405UPC00786210541082
Image provided may only be a representation of final product and may include optional equipment
