Part Number # 54112B
SKU # 2229488
Image provided may only be a representation of
final product and may include optional equipment
54112B

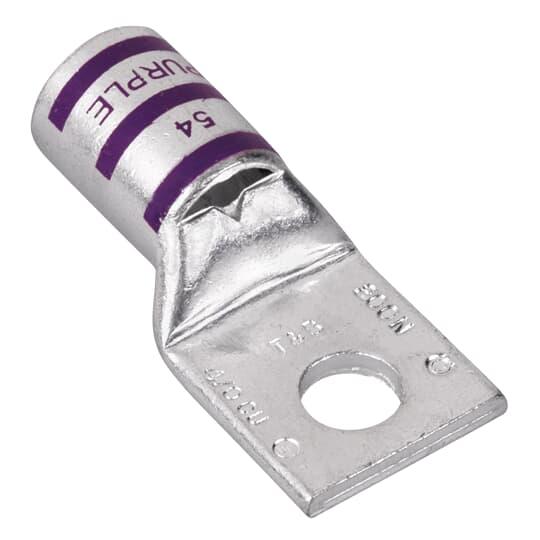

Thomas & Betts 54112B Color-Keyed Compression Lug
Part Number # 54112B
SKU # 2229488
Thomas & Betts 54112B Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 54112B |
| SKU #: | 2229488 |
| Barrel Size: | 0.7 in Dia |
| Barrel Type: | Standard |
| Conductor Size: | 4/0, 4/0 AWG |
| Conductor Type: | Copper |
| Mounting Hole Size: | 0.406, 0.406 in |
| Series: | 54100 |
| Specifications: | 3/8 in Stud Hole Spacing, Tin Plated |
| Tongue Size: | 0.93 in L x 1.03 in W x 0.14 in THK |
| Tongue Type: | Bottom Stacking/Straight, Straight |
| Type: | 1-Hole, 1-Hole Non-Insulated |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210331997 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 54112B Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 54112B
Color-Keyed Compression Lug, 1-Hole Non-Insulated, Series: 54100, Copper Conductor, 4/0 AWG Conductor, Die Code: 54, 35 kV, 3/8 in Stud, Bottom Stacking/Straight Tongue, 0.93 in L x 1.03 in W x 0.14 in THK Tongue, Standard Barrel, 0.7 in Dia Barrel, Specifications: 3/8 in Stud Hole Spacing, Tin Plated, 0.406 in Mounting Hole, Copper, Purple
Additional Description: TB -54112B CU TP 1HL LUG BOTSTACK 4/0 3/8B PUR
Catalog Description: Copper One-Hole Lug, Standard Barrel - Bottom Stacking, Peep Hole, Max 35kV, Wire Size 4/0 AWG, 3/8 Bolt Size, 3/8 Inch Hole Spacing, Tin Plated, Die Code 54, Die Color Code Purple 54
54112B Application
For providing a high degree of reliability in electrical wiring54112B Item Features
- Peep hole
- High conductivity wrought copper construction
- Bottom stacking
- Tin plated finish
54112B Standards
CSA Certified|UL ListedSKU #2229488Part Number #54112BUNSPSC39121405UPC00786210331997
