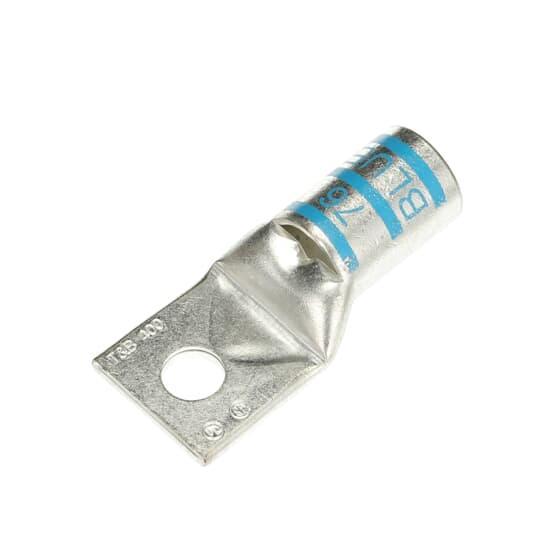

Thomas & Betts 54116 Color-Keyed Compression Lug
Part Number # 54116
SKU # 38769
Thomas & Betts 54116 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 54116 |
| SKU #: | 38769 |
| Barrel Size: | 0.96 in Dia |
| Barrel Type: | Standard |
| Conductor Size: | 400, 400 kcmil |
| Conductor Type: | Copper |
| Mounting Hole Size: | 0.531, 0.531 in |
| Overall Length: | 3.2, 3.2 in |
| Series: | 54100 |
| Specifications: | Tin Plated |
| Tongue Size: | 1.25 in L x 1.41 in W x 0.17 in THK |
| Tongue Type: | Straight |
| Type: | 1-Hole, 1-Hole Non-Insulated |
| Color: | Blue |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210541167 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 54116 Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 54116
Color-Keyed Compression Lug, 1-Hole Non-Insulated, Series: 54100, Copper Conductor, 400 kcmil Conductor, Die Code: 76, 600 VAC to 35 kV, 1/2 in Stud, Straight Tongue, 1.25 in L x 1.41 in W x 0.17 in THK Tongue, 3.2 in Overall Length, Standard Barrel, 0.96 in Dia Barrel, Specifications: Tin Plated, 0.531 in Mounting Hole, Copper, Blue
Additional Description: TB -54116 400 CU STD. BRL. 1 HOLE.5 IN BOLT BOLT BOLT
Catalog Description: Copper One-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size 400 kcmil, 1/2 Inch Bolt Size, Tin Plated, Die Color Code Blue, Die Code 76
54116 Application
For providing a high degree of reliability in electrical wiring54116 Item Features
- Peep hole
- High conductivity wrought copper construction
54116 Standards
CSA Certified|UL File No. E9809SKU #38769Part Number #54116UNSPSC39121405UPC00786210541167
