Part Number # 54118
SKU # 38770
54118

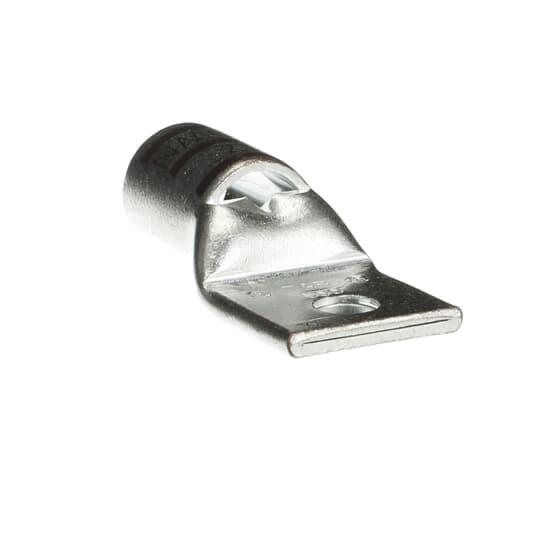

Thomas & Betts 54118 Color-Keyed Compression Lug
Part Number # 54118
SKU # 38770
Thomas & Betts 54118 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 54118 |
| SKU #: | 38770 |
| Barrel Size: | 1.1 in Dia |
| Barrel Type: | Standard |
| Conductor Size: | 500, 500 kcmil |
| Conductor Type: | Copper |
| Mounting Hole Size: | 0.531, 0.531 in |
| Overall Length: | 3.3, 3.3 in |
| Series: | 54100 |
| Specifications: | Tin Plated |
| Tongue Size: | 1.25 in L x 1.61 in W x 0.22 in THK |
| Tongue Type: | Straight |
| Type: | 1-Hole, 1-Hole Non-Insulated |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210541181 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 54118 Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 54118
Color-Keyed Compression Lug, 1-Hole Non-Insulated, Series: 54100, Copper Conductor, 500 kcmil Conductor, Die Code: 87, 35 kV, 1/2 in Stud, Straight Tongue, 1.25 in L x 1.61 in W x 0.22 in THK Tongue, 3.3 in Overall Length, Standard Barrel, 1.1 in Dia Barrel, Specifications: Tin Plated, 0.531 in Mounting Hole, Copper, Brown
Additional Description: TB -54118 500 CU STD. BRL. 1 HOLE 1/2 IN BOLT
Catalog Description: Copper One-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size 500 kcmil, 1/2 Inch Bolt Size, Tin Plated, Die Code 87, Die Color Code Brown
54118 Application
For providing a high degree of reliability in electrical wiring54118 Item Features
- Peep hole
- High conductivity wrought copper construction
- Tin plated finish
54118 Standards
UL E9809 / UL E9809SKU #38770Part Number #54118UNSPSC39121405UPC00786210541181
Image provided may only be a representation of final product and may include optional equipment
