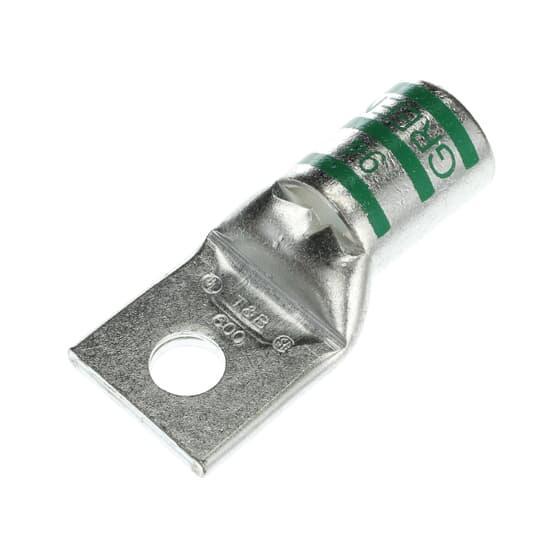

Thomas & Betts 54120 Color-Keyed Compression Lug
Part Number # 54120
SKU # 38771
Thomas & Betts 54120 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 54120 |
| SKU #: | 38771 |
| Barrel Size: | 1.2 in Dia |
| Barrel Type: | Standard |
| Conductor Size: | 600, 600 kcmil |
| Conductor Type: | Copper |
| Mounting Hole Size: | 0.656, 0.656 in |
| Overall Length: | 3.79, 3.79 in |
| Series: | 54100 |
| Specifications: | Tin Plated |
| Tongue Size: | 1.58 in L x 1.75 in W x 0.24 in THK |
| Tongue Type: | Straight |
| Type: | 1-Hole, 1-Hole Non-Insulated |
| Color: | Green |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210541204 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 54120 Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 54120
Color-Keyed Compression Lug, 1-Hole Non-Insulated, Series: 54100, Copper Conductor, 600 kcmil Conductor, Die Code: 94, 35 kV, 5/8 in Stud, Straight Tongue, 1.58 in L x 1.75 in W x 0.24 in THK Tongue, 3.79 in Overall Length, Standard Barrel, 1.2 in Dia Barrel, Specifications: Tin Plated, 0.656 in Mounting Hole, Copper, Green
Additional Description: TB -54120 600 CU STD. BRL. 1 HOLE 5/8 IN BOLT 5/8 IN BOLT - GREENTB -54134
Catalog Description: Copper One-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size 600 kcmil, 5/8 Inch Bolt Size, Tin Plated, Die Code 94, Die Color Code Green
54120 Application
For providing a high degree of reliability in electrical wiring54120 Item Features
- Peep hole
- High conductivity wrought copper construction
- Tin plated finish
54120 Standards
CSA Certified|UL File No. E9809SKU #38771Part Number #54120UNSPSC39121405UPC00786210541204
