54147

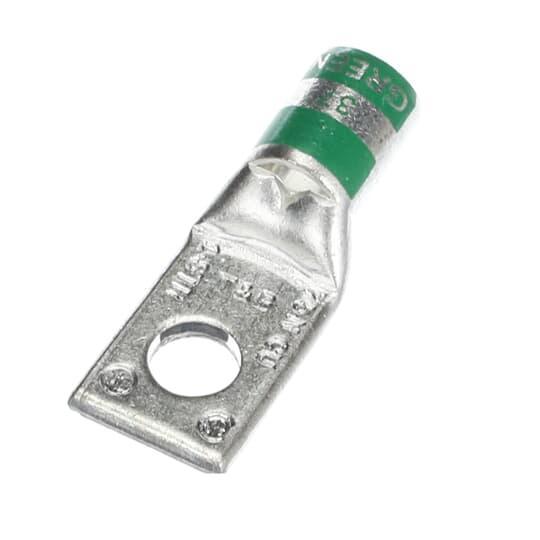

Thomas & Betts 54147 Color-Keyed Compression Lug
Part Number # 54147
SKU # 38787
Thomas & Betts 54147 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 54147 |
| SKU #: | 38787 |
| Barrel Size: | 0.47 in Dia |
| Barrel Type: | Standard |
| Conductor Size: | 1, 1 AWG |
| Conductor Type: | Copper |
| Mounting Hole Size: | 0.344, 0.344 in |
| Overall Length: | 1.73, 1.73 in |
| Series: | 54100 |
| Specifications: | Tin Plated |
| Tongue Size: | 0.93 in L x 0.68 in W x 0.11 in THK |
| Tongue Type: | Straight |
| Type: | 1-Hole, 1-Hole Non-Insulated |
| Color: | Green |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210541471 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 54147 Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 54147
Color-Keyed Compression Lug, 1-Hole Non-Insulated, Series: 54100, Copper Conductor, 1 AWG Conductor, Die Code: 37, 35 kV, 5/16 in Stud, Straight Tongue, 0.93 in L x 0.68 in W x 0.11 in THK Tongue, 1.73 in Overall Length, Standard Barrel, 0.47 in Dia Barrel, Specifications: Tin Plated, 0.344 in Mounting Hole, Copper, Green
Additional Description: TB -54147 No1 CU STD BRL 1 HOLE 5/16 IN BOLT
Catalog Description: Copper One-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size #1 AWG, 5/16 Inch Bolt Size, Tin Plated, Die Code 37, Die Color Code Green
54147 Application
For providing a high degree of reliability in electrical wiring54147 Item Features
- Peep hole
- High conductivity wrought copper construction
- Tin plated finish
54147 Standards
CSA Certified|UL File No. E9809SKU #38787Part Number #54147UNSPSC39121405UPC00786210541471
