Part Number # 54148
SKU # 38790
Image provided may only be a representation of
final product and may include optional equipment
54148

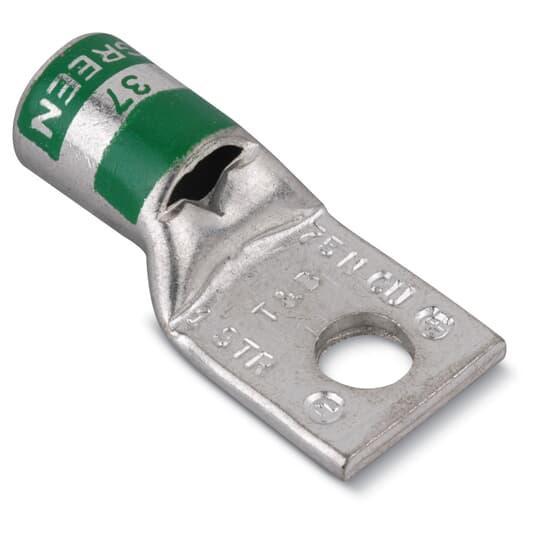

Thomas & Betts 54148 Color-Keyed Compression Lug
Part Number # 54148
SKU # 38790
Thomas & Betts 54148 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 54148 |
| SKU #: | 38790 |
| Barrel Size: | 0.47 in Dia |
| Barrel Type: | Standard |
| Conductor Size: | 1, 1 AWG |
| Conductor Type: | Copper |
| Mounting Hole Size: | 0.406, 0.406 in |
| Overall Length: | 1.78, 1.78 in |
| Series: | 54100 |
| Specifications: | Tin Plated |
| Tongue Size: | 0.98 in L x 0.68 in W x 0.11 in THK |
| Tongue Type: | Straight |
| Type: | 1-Hole, 1-Hole Non-Insulated |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210541488 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 54148 Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 54148
Color-Keyed Compression Lug, 1-Hole Non-Insulated, Series: 54100, Copper Conductor, 1 AWG Conductor, Die Code: 37, 35 kV, 3/8 in Stud, Straight Tongue, 0.98 in L x 0.68 in W x 0.11 in THK Tongue, 1.78 in Overall Length, Standard Barrel, 0.47 in Dia Barrel, Specifications: Tin Plated, 0.406 in Mounting Hole, Copper, Green
Additional Description: TB -54148 No1 CU STD BRL 1 HOLE 3/8 INCH BOLT
Catalog Description: Copper One-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size #1 AWG, 3/8 Inch Bolt Size, Tin Plated, Die Code 37, Die Color Code Green
54148 Application
For providing a high degree of reliability in electrical wiring54148 Item Features
- Peep hole
- High conductivity wrought copper construction
- Tin plated finish
54148 Standards
CSA Certified|UL File No. E9809SKU #38790Part Number #54148UNSPSC39121405UPC00786210541488
