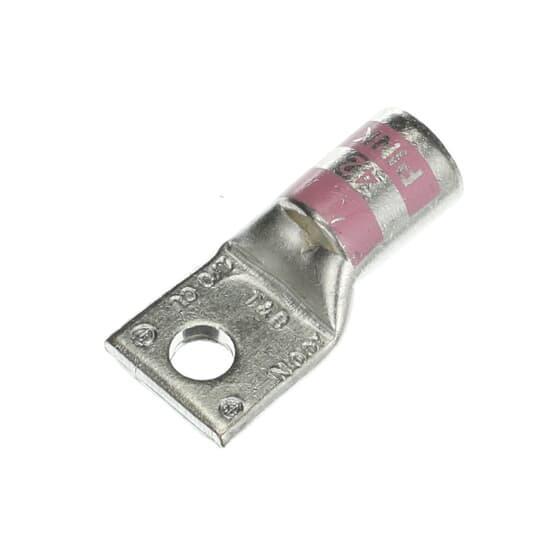

Thomas & Betts 54152-TB Color-Keyed Compression Lug
Thomas & Betts 54152-TB Color-Keyed Compression Lug
Part #:54152-TB
SKU #: 38793
Key Features
Part #:54152-TB
SKU #: 38793
Brand: Thomas & Betts
Barrel Size: 0.52 in Dia
Barrel Type: Standard
Conductor Size: 1/0, 1/0 AWG
Conductor Type: Copper
Mounting Hole Size: 0.281, 0.281 in
- Peep hole
- High conductivity wrought copper construction
- Tin plated finish
Thomas & Betts 54152-TB Color-Keyed Compression Lug
Color-Keyed Compression Lug, 1-Hole Non-Insulated, Series: 54100, Copper Conductor, 1/0 AWG Conductor, Die Code: 42, 35 kV, 1/4 in Stud, 0.65 in L x 0.75 in W x 0.13 in THK Tongue, 1.6 in Overall Length, Standard Barrel, 0.52 in Dia Barrel, Specifications: Tin Plated, 0.281 in Mounting Hole, Copper, Pink
Additional Description: TB -54152-TB 1/0 CU STD BRL 1 HOLE 1/4 INCH BOLT BOLT BOLT
Catalog Description: Copper One-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size 1/0 AWG, 1/4 Inch Bolt Size, Tin Plated, Die Code 42, Die Color Code 42
