54163-TB

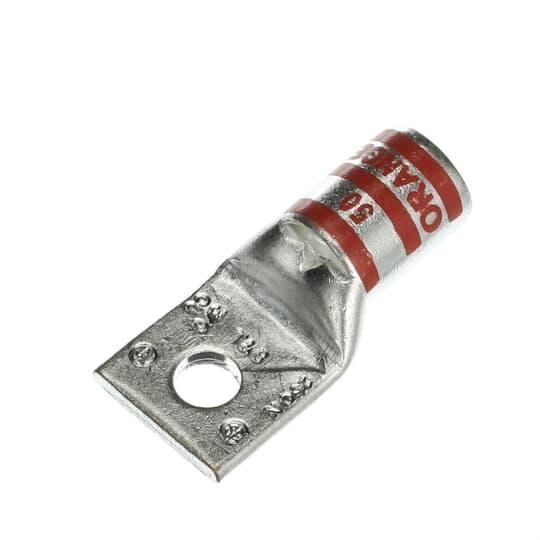

Thomas & Betts 54163-TB Color-Keyed Compression Lug
Part Number # 54163-TB
SKU # 38801
Thomas & Betts 54163-TB Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 54163-TB |
| SKU #: | 38801 |
| Barrel Size: | 0.63 in Dia |
| Barrel Type: | Standard |
| Conductor Size: | 3/0, 3/0 AWG |
| Conductor Type: | Copper |
| Mounting Hole Size: | 0.344, 0.344 in |
| Overall Length: | 1.98, 1.98 in |
| Series: | 54100 |
| Specifications: | Tin Plated |
| Tongue Size: | 0.88 in L x 0.92 in W x 0.13 in THK |
| Type: | 1-Hole, 1-Hole Non-Insulated |
| Color: | Orange |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210541631 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 54163-TB Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 54163-TB
Color-Keyed Compression Lug, 1-Hole Non-Insulated, Series: 54100, Copper Conductor, 3/0 AWG Conductor, Die Code: 50, 35 kV, 5/16 in Stud, 0.88 in L x 0.92 in W x 0.13 in THK Tongue, 1.98 in Overall Length, Standard Barrel, 0.63 in Dia Barrel, Specifications: Tin Plated, 0.344 in Mounting Hole, Copper, Orange
Additional Description: TB -54163-TB 3/0 CU STD. BRL. 1 HOLE 5/16IN BOLT BOLT
Catalog Description: Copper One-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size 3/0 AWG, 5/16 Inch Bolt Size, Tin Plated, Die Code 50, Die Color Code Orange
54163-TB Application
For providing a high degree of reliability in electrical wiring54163-TB Item Features
- Peep hole
- High conductivity wrought copper construction
- Tin plated finish
54163-TB Standards
CSA Certified|UL File No. E9809SKU #38801Part Number #54163-TBUNSPSC39121405UPC00786210541631
