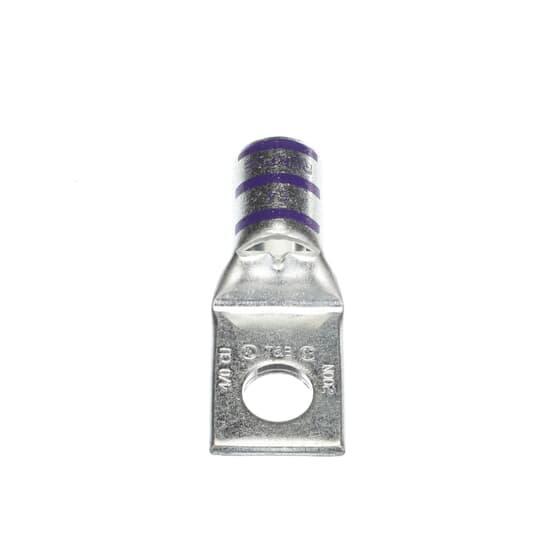

Thomas & Betts 54170 Color-Keyed Compression Lug
Thomas & Betts 54170 Color-Keyed Compression Lug
Part #:54170
SKU #: 38805
Key Features
Part #:54170
SKU #: 38805
Brand: Thomas & Betts
Barrel Size: 0.7 in Dia
Barrel Type: Standard
Conductor Size: 4/0, 4/0 AWG
Conductor Type: Copper
Mounting Hole Size: 0.531, 0.531 in
- Peep hole
- High conductivity wrought copper construction
Thomas & Betts 54170 Color-Keyed Compression Lug
Color-Keyed Compression Lug, 1-Hole Non-Insulated, Series: 54100, Copper Conductor, 4/0 AWG Conductor, Die Code: 54, 600 VAC to 35 kV, 1/2 in Stud, Straight Tongue, 1.25 in L x 1.03 in W x 0.14 in THK Tongue, 2-1/2 in Overall Length, Standard Barrel, 0.7 in Dia Barrel, Specifications: Tin Plated, 0.531 in Mounting Hole, Copper, Purple
Additional Description: TB -54170 4/0 CU STD BRL. 1 HOLE.5 INCH BOLT BOLT
Catalog Description: Copper One-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size 4/0 AWG, 1/2 Inch Bolt Size, Tin Plated, Die Color Code Purple, Die Code 54
