Part Number # 54174T
SKU # 2327277
54174T

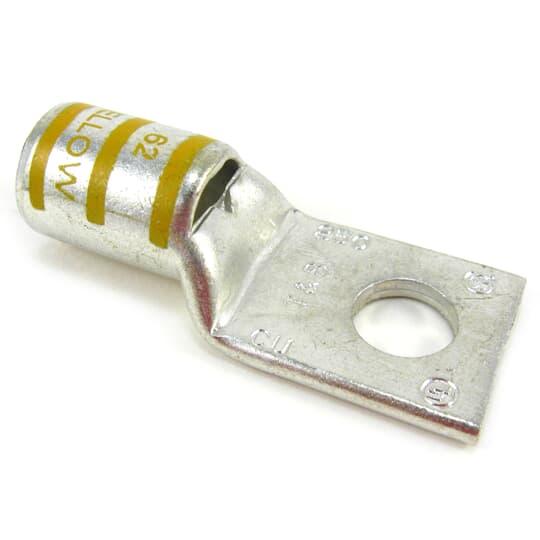

Thomas & Betts 54174T Color-Keyed Compression Lug
Part Number # 54174T
SKU # 2327277
Thomas & Betts 54174T Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 54174T |
| SKU #: | 2327277 |
| Barrel Size: | 0.77 in Dia |
| Barrel Type: | Standard |
| Conductor Size: | 250, 250 kcmil |
| Conductor Type: | Copper |
| Mounting Hole Size: | 0.406, 0.406 in |
| Series: | 54100 |
| Specifications: | Tin Plated |
| Tongue Type: | Top Stacking |
| Type: | 1-Hole, 1-Hole Non-Insulated |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210234830 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 54174T Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 54174T
Color-Keyed Compression Lug, 1-Hole Non-Insulated, Series: 54100, Copper Conductor, 250 kcmil Conductor, Die Code: 62, 600 V to 35 kV, 3/8 in Stud, Top Stacking Tongue, Standard Barrel, 0.77 in Dia Barrel, Specifications: Tin Plated, 0.406 in Mounting Hole, Copper, Yellow
Additional Description: TB -54174T (N) CU TP 1HL LUG TOPSTACK 250 3/8B YEL NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Copper One-Hole Lug, Standard Barrel - Top Stacking, Peep Hole, Max 35kV, 250 kcmil Wire, 3/8 Inch Bolt Size, Tin Plated, Die Code 62, Die Color Code Yellow
54174T Application
For providing a high degree of reliability in electrical wiring54174T Item Features
- Peep hole
- Top stacking
- High conductivity wrought copper construction
54174T Standards
CSA Certified|UL ListedSKU #2327277Part Number #54174TUNSPSC39121405UPC00786210234830
Image provided may only be a representation of final product and may include optional equipment
