54211

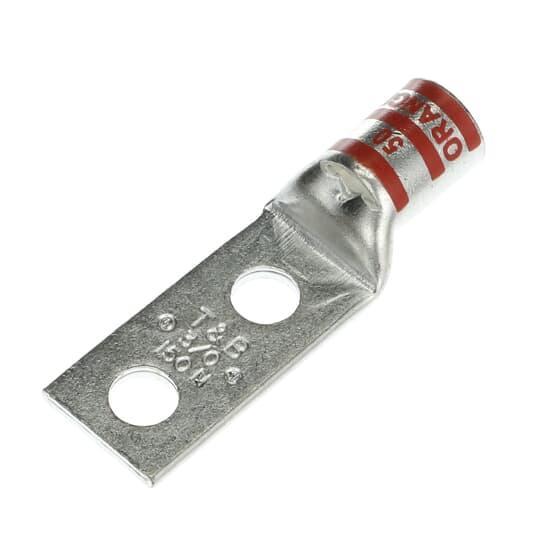

Thomas & Betts 54211 Color-Keyed Compression Lug
Part Number # 54211
SKU # 2147234
Thomas & Betts 54211 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 54211 |
| SKU #: | 2147234 |
| Barrel Size: | 0.63 in Dia |
| Barrel Type: | Standard |
| Conductor Size: | 3/0, 3/0 AWG |
| Conductor Type: | Copper |
| Mounting Hole Size: | 0.406, 0.406 in |
| Overall Length: | 2.94, 2.94 in |
| Series: | 54200 |
| Specifications: | 1 in Hole Spacing, 1 in Stud Hole Spacing, Tin Plated |
| Tongue Size: | 1.81 in L x 0.94 in W x 0.14 in THK |
| Tongue Type: | Straight |
| Type: | 2-Hole, 2-Hole Non-Insulated |
| Color: | Orange |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210542119 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 54211 Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 54211
Color-Keyed Compression Lug, 2-Hole Non-Insulated, Series: 54200, Copper Conductor, 3/0 AWG Conductor, Die Code: 50, 35 kV, 3/8 in Stud, Straight Tongue, 1.81 in L x 0.94 in W x 0.14 in THK Tongue, 2.94 in Overall Length, Standard Barrel, 0.63 in Dia Barrel, Specifications: 1 in Stud Hole Spacing, Tin Plated, 0.406 in Mounting Hole, Copper, Orange
Additional Description: TB -54211 CU TP 2HL LUG STNDBRL 3/0 3/8B ORG
Catalog Description: Copper Two-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size 3/0 AWG, 3/8 Inch Bolt Size, 1 Inch Hole Spacing, Tin Plated, Die Code 50, Die Color Code Orange
54211 Application
For providing a high degree of reliability in electrical wiring54211 Item Features
- Peep hole
- High conductivity wrought copper construction
- Tin plated finish
54211 Standards
CSA Certified|UL File No. E9809SKU #2147234Part Number #54211UNSPSC39121405UPC00786210542119
