Part Number # 54212UF
SKU # 403646
Image provided may only be a representation of
final product and may include optional equipment
54212UF

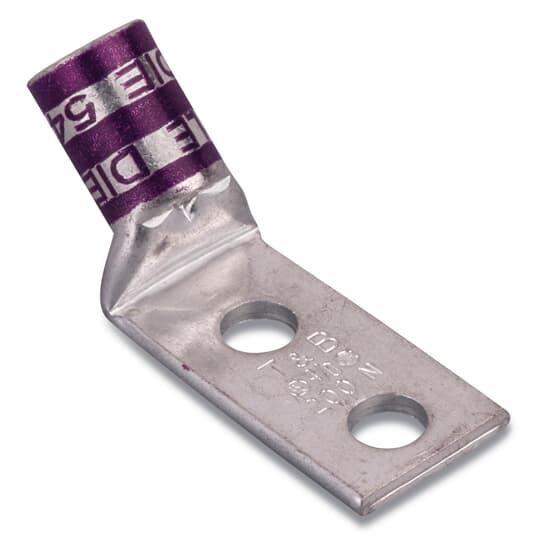

Thomas & Betts 54212UF Color-Keyed Compression Lug
Part Number # 54212UF
SKU # 403646
Thomas & Betts 54212UF Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 54212UF |
| SKU #: | 403646 |
| Barrel Size: | 0.7 in Dia |
| Barrel Type: | Standard |
| Conductor Size: | 4/0, 4/0 AWG |
| Conductor Type: | Copper |
| Specifications: | 1 in Stud Hole Spacing, Tin Plated |
| Tongue Size: | 1.93 in L x 1.03 in W x 0.14 in THK |
| Tongue Type: | 45, 45 deg |
| Type: | 2-Hole, 2-Hole Non-Insulated |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210625683 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 54212UF Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 54212UF
Color-Keyed Compression Lug, 2-Hole Non-Insulated, Copper Conductor, 4/0 AWG Conductor, Die Code: 54, 35 kV, 3/8 in Stud, 45 deg Tongue, 1.93 in L x 1.03 in W x 0.14 in THK Tongue, Standard Barrel, 0.7 in Dia Barrel, Specifications: 1 in Stud Hole Spacing, Tin Plated, Copper, Purple
Additional Description: TB -54212UF (N) CU TP 2HL LUG 45D STND 4/0 3/8B PUR NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Copper Two-Hole Lug, 45 Degree Bend Standard Barrel, Peep Hole, Max 35kV, Wire Size 4/0 AWG, 3/8 Inch Bolt Size, 1 Inch Hole Spacing, Tin Plated, Die Code 54, Die Color Code Purple
54212UF Item Features
- Peep hole
- High conductivity wrought copper
- 1 in Hole Spacing
54212UF Standards
CSA Certified|UL File No. E9809SKU #403646Part Number #54212UFUNSPSC39121405UPC00786210625683
