Part Number # 54223
SKU # 2290563
Image Disclaimers Message
54223

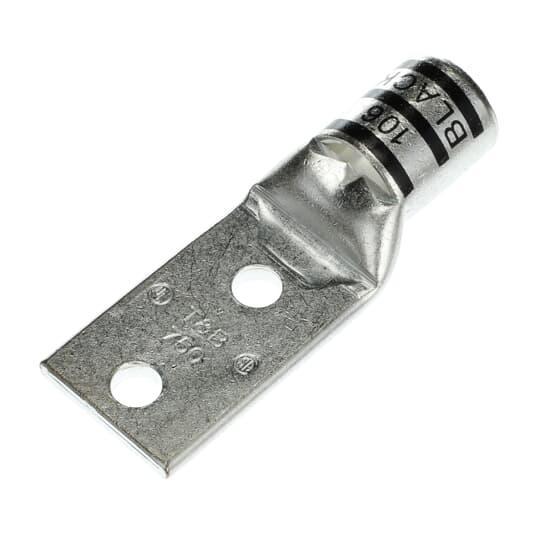

Thomas & Betts 54223 Color-Keyed Compression Lug
Part Number # 54223
SKU # 2290563
Thomas & Betts 54223 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 54223 |
| SKU #: | 2290563 |
| Barrel Size: | 1.33 in Dia |
| Barrel Type: | Standard |
| Conductor Size: | 750, 750 kcmil |
| Conductor Type: | Copper |
| Mounting Hole Size: | 0.531, 0.531 in |
| Overall Length: | 5.32, 5.32 in |
| Series: | 54200 |
| Specifications: | 1-3/4 in Hole Spacing, 1-3/4 in Stud Hole Spacing, Tin Plated |
| Tongue Size: | 3 in L x 1.94 in W x 0.27 in THK |
| Tongue Type: | Straight |
| Type: | 2-Hole, 2-Hole Non-Insulated |
| Color: | Black |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210542232 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 54223 Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 54223
Color-Keyed Compression Lug, 2-Hole Non-Insulated, Series: 54200, Copper Conductor, 750 kcmil Conductor, Die Code: 106, 35 kV, 1/2 in Stud, Straight Tongue, 3 in L x 1.94 in W x 0.27 in THK Tongue, 5.32 in Overall Length, Standard Barrel, 1.33 in Dia Barrel, Specifications: 1-3/4 in Stud Hole Spacing, Tin Plated, 0.531 in Mounting Hole, Copper, Black
Additional Description: TB -54223 CONNECTOR, COMPRESSION 2BOLT
Catalog Description: Copper Two-Hole Lug, Standard Barrel, Max 35kV, Peep Hole, Wire Size 750 kcmil, 1/2 Inch Bolt Size, 1-3/4 Inch Hole Spacing, Tin Plated, Die Code 106, Die Color Code Black
54223 Application
For providing a high degree of reliability in electrical wiring54223 Item Features
- Peep hole
- High conductivity wrought copper construction
54223 Standards
CSA Certified|UL File No. E9809SKU #2290563Part Number #54223UNSPSC39121405UPC00786210542232
