Part Number # 54260
SKU # 2229976
Image Disclaimers Message
54260

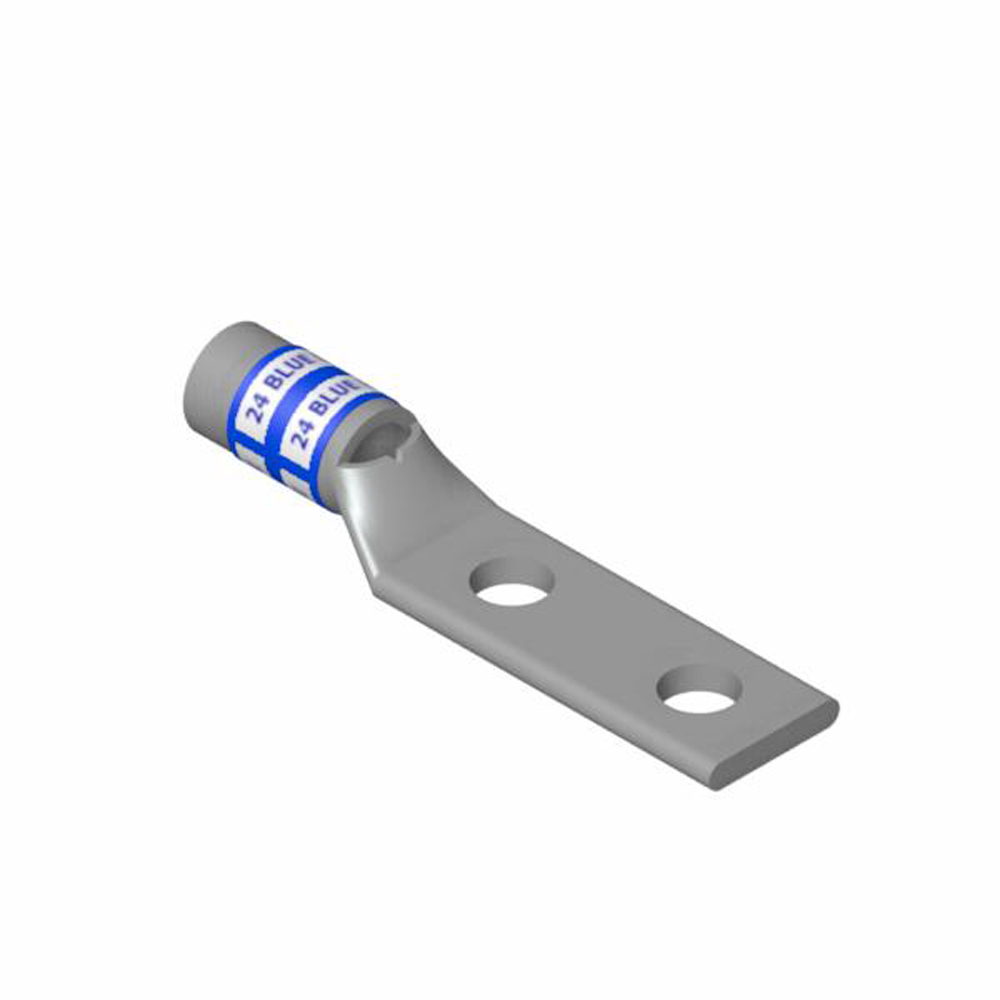

Thomas & Betts 54260 Color-Keyed Compression Lug
Part Number # 54260
SKU # 2229976
Thomas & Betts 54260 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 54260 |
| SKU #: | 2229976 |
| Barrel Size: | 0.57 in Dia |
| Barrel Type: | Standard |
| Conductor Size: | 2/0, 2/0 AWG |
| Conductor Type: | Copper |
| Mounting Hole Size: | 0.531, 0.531 in |
| Overall Length: | 3.83, 3.83 in |
| Series: | 54200 |
| Specifications: | 1-3/4 in Hole Spacing, 1-3/4 in Stud Hole Spacing, Tin Plated |
| Tongue Size: | 2.81 in L x 0.83 in W x 0.14 in THK |
| Tongue Type: | Straight |
| Type: | 2-Hole, 2-Hole Non-Insulated |
| Color: | Black |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210542607 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 54260 Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 54260
Color-Keyed Compression Lug, 2-Hole Non-Insulated, Series: 54200, Copper Conductor, 2/0 AWG Conductor, Die Code: 45, 35 kV, 1/2 in Stud, Straight Tongue, 2.81 in L x 0.83 in W x 0.14 in THK Tongue, 3.83 in Overall Length, Standard Barrel, 0.57 in Dia Barrel, Specifications: 1-3/4 in Stud Hole Spacing, Tin Plated, 0.531 in Mounting Hole, Copper, Black
Additional Description: TB -54260 CU TP 2HL LUG STND BRL 2/0 1/2B BLK
Catalog Description: Copper Two-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size 2/0 AWG, 1/2 Inch Bolt Size, 1-3/4 Inch Hole Spacing, Tin Plated, Die Code 45, Die Color Code Black
54260 Application
For providing a high degree of reliability in electrical wiring54260 Item Features
- Peep hole
- High conductivity wrought copper construction
- Tin plated finish
54260 Standards
CSA Certified|UL File No. E9809SKU #2229976Part Number #54260UNSPSC39121405UPC00786210542607
