Part Number # 54270
SKU # 2220309
Image Disclaimers Message
54270

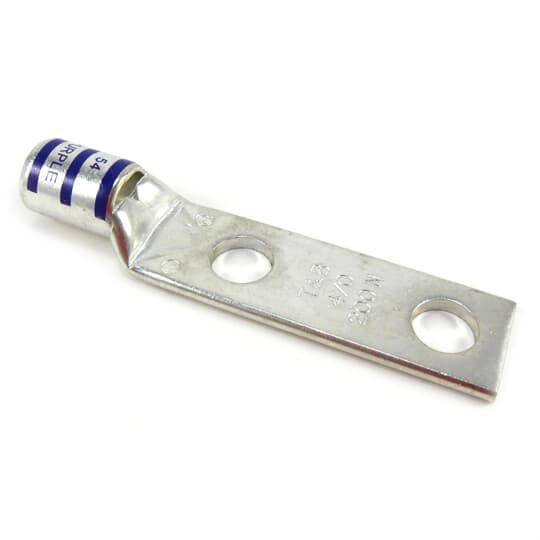

Thomas & Betts 54270 Color-Keyed Compression Lug
Part Number # 54270
SKU # 2220309
Thomas & Betts 54270 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 54270 |
| SKU #: | 2220309 |
| Barrel Size: | 0.7 in Dia |
| Barrel Type: | Standard |
| Conductor Size: | 4/0, 4/0 AWG |
| Conductor Type: | Copper |
| Mounting Hole Size: | 0.531, 0.531 in |
| Overall Length: | 4-1/4, 4-1/4 in |
| Series: | 54200 |
| Specifications: | 1-3/4 in Hole Spacing, 1-3/4 in Stud Hole Spacing, Tin Plated |
| Tongue Size: | 3 in L x 1.03 in W x 0.14 in THK |
| Tongue Type: | Straight |
| Type: | 2-Hole, 2-Hole Non-Insulated |
| Color: | Purple |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210542706 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 54270 Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 54270
Color-Keyed Compression Lug, 2-Hole Non-Insulated, Series: 54200, Copper Conductor, 4/0 AWG Conductor, Die Code: 54, 35 kV, 1/2 in Stud, Straight Tongue, 3 in L x 1.03 in W x 0.14 in THK Tongue, 4-1/4 in Overall Length, Standard Barrel, 0.7 in Dia Barrel, Specifications: 1-3/4 in Stud Hole Spacing, Tin Plated, 0.531 in Mounting Hole, Copper, Purple
Additional Description: TB -54270 CU TP 2HL LUG STND BRL 4/0 1/2B PUR
Catalog Description: Copper Two-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size 4/0 AWG, 1/2 Inch Bolt Size, 1-3/4 Inch Hole Spacing, Tin Plated, Die Code 54, Die Color Code Purple
54270 Application
For providing a high degree of reliability in electrical wiring54270 Item Features
- Peep hole
- High conductivity wrought copper construction
- Tin plated finish
54270 Standards
CSA Certified|UL File No. E9809SKU #2220309Part Number #54270UNSPSC39121405UPC00786210542706
