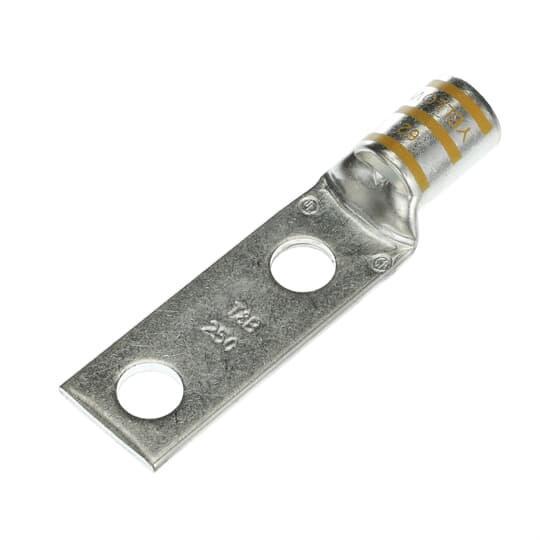

Thomas & Betts 54275 Color-Keyed Compression Lug
Part Number # 54275
SKU # 56299
Thomas & Betts 54275 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 54275 |
| SKU #: | 56299 |
| Barrel Size: | 0.77 in Dia |
| Barrel Type: | Standard |
| Conductor Size: | 250, 250 kcmil |
| Conductor Type: | Copper |
| Mounting Hole Size: | 0.531, 0.531 in |
| Overall Length: | 4.19, 4.19 in |
| Series: | 54200 |
| Specifications: | 1-3/4 in Hole Spacing, 1/2 in Stud Hole Spacing, Tin Plated |
| Tongue Size: | 2.81 in L x 1.13 in W x 0.18 in THK |
| Tongue Type: | Straight |
| Type: | 2-Hole, 2-Hole Non-Insulated |
| Color: | Yellow |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210542751 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 54275 Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 54275
Color-Keyed Compression Lug, 2-Hole Non-Insulated, Series: 54200, Copper Conductor, 250 kcmil Conductor, Die Code: 62, 35 kV, 1/2 in Stud, Straight Tongue, 2.81 in L x 1.13 in W x 0.18 in THK Tongue, 4.19 in Overall Length, Standard Barrel, 0.77 in Dia Barrel, Specifications: 1/2 in Stud Hole Spacing, Tin Plated, 0.531 in Mounting Hole, Copper, Yellow
Additional Description: TB -54275 CONNECTOR,COMPRESSION,2-BOLT *** 10PC MIMIMUM ***
Catalog Description: Copper Two-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size 250 kcmil, 1/2 Inch Bolt Size 1-3/4 Inch Hole Spacing, Tin Plated, Die Code 62, Die Color Code Yellow
54275 Application
For providing a high degree of reliability in electrical wiring54275 Item Features
- Peep hole
- High conductivity wrought copper construction
- Tin plated finish
54275 Standards
CSA Certified|UL File No. E9809SKU #56299Part Number #54275UNSPSC39121405UPC00786210542751
