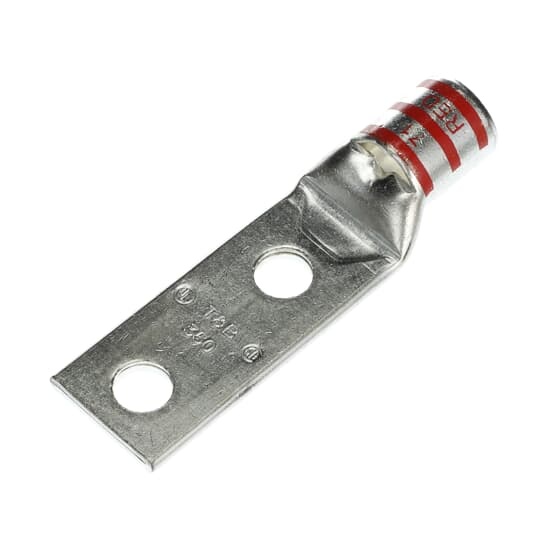

Thomas & Betts 54282 Color-Keyed Compression Lug
Part Number # 54282
SKU # 38830
Thomas & Betts 54282 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 54282 |
| SKU #: | 38830 |
| Barrel Size: | 0.93 in Dia |
| Barrel Type: | Standard |
| Conductor Size: | 350, 350 kcmil |
| Conductor Type: | Copper |
| Mounting Hole Size: | 0.531, 0.531 in |
| Overall Length: | 4.6, 4.6 in |
| Series: | 54200 |
| Specifications: | 1-3/4 in Hole Spacing, 1-3/4 in Stud Hole Spacing, Tin Plated |
| Tongue Size: | 3 in L x 1.36 in W x 0.18 in THK |
| Tongue Type: | Straight |
| Type: | 2-Hole, 2-Hole Non-Insulated |
| Color: | Red |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210542829 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 54282 Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 54282
Color-Keyed Compression Lug, 2-Hole Non-Insulated, Series: 54200, Copper Conductor, 350 kcmil Conductor, Die Code: 71, 35 kV, 1/2 in Stud, Straight Tongue, 3 in L x 1.36 in W x 0.18 in THK Tongue, 4.6 in Overall Length, Standard Barrel, 0.93 in Dia Barrel, Specifications: 1-3/4 in Stud Hole Spacing, Tin Plated, 0.531 in Mounting Hole, Copper, Red
Additional Description: TB -54282 CU TP 2HL LUG STND BRL 350 1/2B RED SHORT BARREL
Catalog Description: Copper Two-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size 350 kcmil, 1/2 Inch Bolt Size, 1-3/4 Inch Hole Spacing, Tin Plated, Die Code 71, Die Color Code Red
54282 Application
For providing a high degree of reliability in electrical wiring54282 Item Features
- Peep hole
- High conductivity wrought copper construction
- Tin plated finish
54282 Standards
CSA Certified|UL File No. E9809SKU #38830Part Number #54282UNSPSC39121405UPC00786210542829
