Part Number # 54440
SKU # 2354718
54440

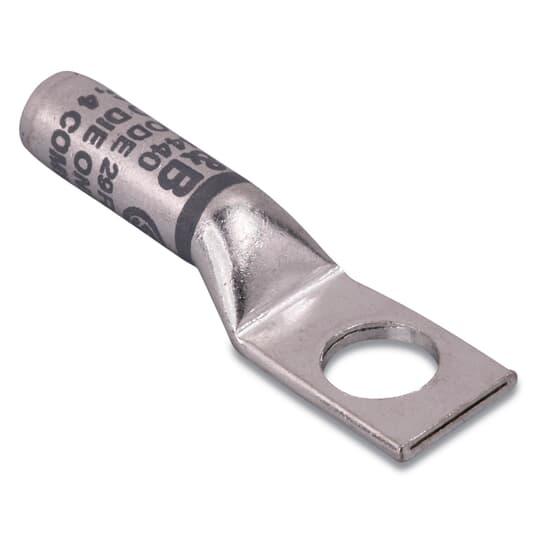

Thomas & Betts 54440 Color-Keyed Compression Lug
Part Number # 54440
SKU # 2354718
Thomas & Betts 54440 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 54440 |
| SKU #: | 2354718 |
| Barrel Size: | 0.81 in Dia |
| Barrel Type: | Blind End/Long |
| Conductor Size: | 4, 4 AWG |
| Conductor Type: | Copper |
| Mounting Hole Size: | 0.406, 0.406 in |
| Overall Length: | 2.08, 2.08 in |
| Series: | 54400 |
| Specifications: | Tin Plated |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Tongue Size: | 3 in L x 0.58 in W x 0.08 in THK |
| Tongue Type: | Straight |
| Type: | 1-Hole High Voltage, 1-Hole High Voltage Non-Insulated |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210544403 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 54440 Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 54440
Color-Keyed Compression Lug, 1-Hole High Voltage Non-Insulated, Series: 54400, Copper Conductor, 4 AWG Conductor, Die Code: 29R, 15 kV, 3/8 in Stud, Straight Tongue, 3 in L x 0.58 in W x 0.08 in THK Tongue, 2.08 in Overall Length, Blind End/Long Barrel, 0.81 in Dia Barrel, Specifications: Tin Plated, 105 deg C, 0.406 in Mounting Hole, Copper, Gray
Additional Description: TB -54440 (N) CU TP 1HL HIGHV LUG LONGBRL No4 GRY NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Copper One-Hole High Voltage Lug, Long Barrel, Blind End, Max 15kV, Wire Size #4 AWG, 3/8 Inch Bolt Size, Tin Plated, Die Code 29R, Die Color Code Gray Rounding
54440 Application
For providing a high degree of reliability in electrical wiring54440 Item Features
- Recommended for up to 15 kVAC applications, installed with standard t and b tools with special rounding dies
- The rounding die overlapped compressions provide a smooth round surface
- This combined with the tapered barrel ends, addresses the controlling of potentially damaging electrical stresses of high voltages
- Round hole
- Recommended for up to 15 kV applications
- Installed with standard t and b tools with special rounding dies
- Tin plated finish
54440 Standards
CSA Certified|UL File No. E9809SKU #2354718Part Number #54440UNSPSC39121405UPC00786210544403
Image provided may only be a representation of final product and may include optional equipment
