54470

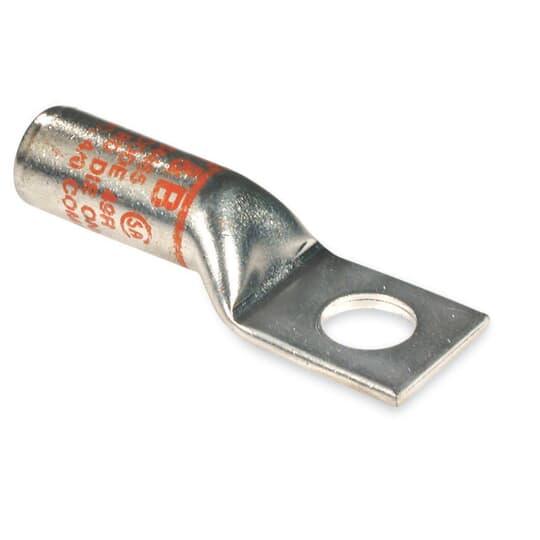

Thomas & Betts 54470 Color-Keyed Compression Lug
Part Number # 54470
SKU # 263619
$388.85 / 10Each
Thomas & Betts 54470 Key Features
Brand: Thomas & Betts
Part Number # 54470
SKU #263619
Barrel Size: 1.06 in Dia
Barrel Type: Blind End/Long
Conductor Size: 4/0, 4/0 AWG
Conductor Type: Copper
Mounting Hole Size: 0.531, 0.531 in
Overall Length: 2.78, 2.78 in
Series: 54400
Specifications: Tin Plated
Temperature Rating (Degrees F): 105, 105 deg C
Tongue Size: 3 in L x 1 in W x 0.13 in THK
Tongue Type: Straight
Type: 1-Hole High Voltage, 1-Hole High Voltage Non-Insulated
Voltage Rating: 15, 15 kV
Color: Purple
Country of origin: MX
Material: Copper
Manufacturer Name: ABB
UNSPSC: 39121405
UPC: 00786210544700
$388.85 / 10Each
SKU # 263619
Part Number # 54470
- Color-Keyed Compression Lug, 1-Hole High Voltage Non-Insulated, Series: 54400, Copper Conductor, 4/0 AWG Conductor, Die Code: 54R, 15 kV, 1/2 in Stud, Straight Tongue, 3 in L x 1 in W x 0.13 in THK Tongue, 2.78 in Overall Length, Blind End/Long Barrel, 1.06 in Dia Barrel, Specifications: Tin Plated, 105 deg C, 0.531 in Mounting Hole, Copper, Purple
54470 Application
For providing a high degree of reliability in electrical wiring54470 Item Features
- Recommended for up to 15 kVAC applications, installed with standard t and b tools with special rounding dies
- The rounding die overlapped compressions provide a smooth round surface
- This combined with the tapered barrel ends, addresses the controlling of potentially damaging electrical stresses of high voltages
- Round hole
- Recommended for up to 15 kV applications
- Installed with standard t and b tools with special rounding dies
- Tin plated finish
54470 Standards
CSA Certified|UL File No. E9809SKU #263619Part Number #54470UNSPSC39121405UPC00786210544700
