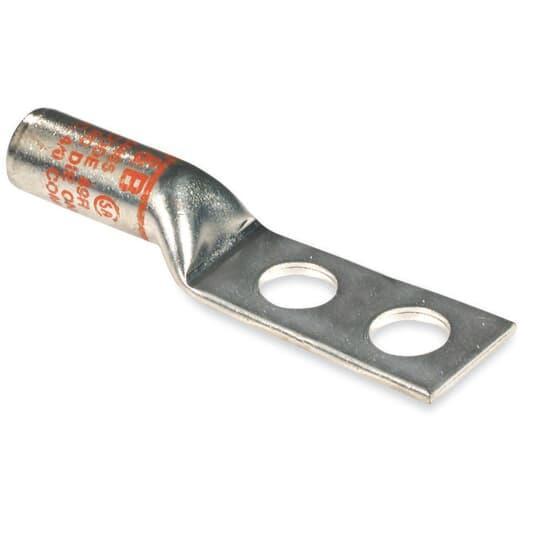

Thomas & Betts 54484 Color-Keyed Compression Lug
Part Number # 54484
SKU # 2290957
$586.59 / 6Each
Thomas & Betts 54484 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 54484 |
| SKU #: | 2290957 |
| Barrel Size: | 1-1/16 in Dia |
| Barrel Type: | Blind End/Long |
| Conductor Size: | 500, 500 kcmil |
| Conductor Type: | Copper |
| Mounting Hole Size: | 0.531, 0.531 in |
| Overall Length: | 5.6, 5.6 in |
| Series: | 54400 |
| Specifications: | 1-3/4 in Hole Spacing, 1-3/4 in Stud Hole Spacing, Electro-Tin Plated |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Tongue Size: | 5.011 in L x 1.54 in W x 0.23 in THK |
| Tongue Type: | Straight |
| Type: | 2-Hole High Voltage, 2-Hole High Voltage Non-Insulated |
| Color: | Brown |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210544847 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$586.59 / 6Each
Quantity:
- Color-Keyed Compression Lug, 2-Hole High Voltage Non-Insulated, Series: 54400, Copper Conductor, 500 kcmil Conductor, Die Code: 87R, 35 kV, 1/2 in Stud, Straight Tongue, 5.011 in L x 1.54 in W x 0.23 in THK Tongue, 5.6 in Overall Length, Blind End/Long Barrel, 1-1/16 in Dia Barrel, Specifications: 1-3/4 in Stud Hole Spacing, Electro-Tin Plated, 105 deg C, 0.531 in Mounting Hole, Copper, Brown
54484 Application
For providing a high degree of reliability in electrical wiring54484 Item Features
- Electro-tin plated for corrosion-resistance
- Chamfered barrels provide ease of strand entry and inspection hole facilitates full insertion of the conductor
- Cable area clearly identified on lug
54484 Standards
CSA Certified|UL File No. E9809SKU #2290957Part Number #54484UNSPSC39121405UPC00786210544847
