Brand: Thomas & Betts

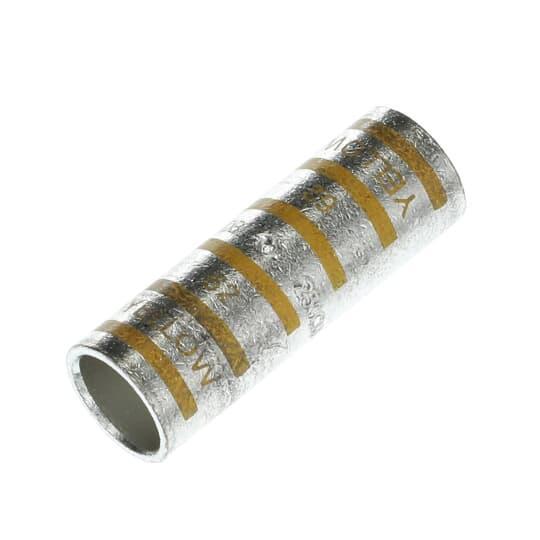

Thomas & Betts 54513 Color-Keyed Splice Connector
Image Disclaimers Message
Brand: Thomas & Betts
Thomas & Betts 54513 Color-Keyed Splice Connector
Brand: Thomas & Betts
Thomas & Betts 54513 Color-Keyed Splice Connector
Part #:54513
SKU #: 38845
$227.80/10EA
Key Features
Part #:54513
SKU #: 38845
Brand: Thomas & Betts
Conductor Size: 250, 250 kcmil
Conductor Type: Copper
Outside Diameter: 0.77, 0.77 in
Specifications: Tin Plated, Tin Plated Finish
Type: 2-Way Standard Barrel
$227.80/10EA
- 2-way connectors provide high pullout values, are easy to insulate and provide a low resistance connection of high quality and low installed cost
- Color coded for correct matching of installing die and connector
- 35 kV max voltage
Specifications
Brand: Thomas & Betts
Conductor Size: 250, 250 kcmil
Conductor Type: Copper
Outside Diameter: 0.77, 0.77 in
Specifications: Tin Plated, Tin Plated Finish
Type: 2-Way Standard Barrel
Voltage Rating: 600, 600 VAC
Color code: Yellow
Country of origin: MX
Length: 2-1/4, 2-1/4 in
Material: Copper
Manufacturer Name: ABB
UNSPSC: 39121449
UPC: 00786210545134
Thomas & Betts 54513 Color-Keyed Splice Connector
Color-Keyed Splice Connector, 2-Way Standard Barrel, Copper Conductor, 250 kcmil Conductor, Die Code: 62, 600 VAC, 0.77 in OD, 2-1/4 in Length, Specifications: Tin Plated, Copper, Yellow Color Code
Additional Description: TB -54513 CU TP 2WAY CONN SPLICE STND 250 YEL
Catalog Description: Copper Two-Way Splice Connector, Standard Barrel, Max 35kV, Wire Size 250 kcmil, Tin Plated, Die Code 62, Die Color Code Yellow
Item Features
Item FeaturesCSA Certified|UL File No. E9809
