Brand: Thomas & Betts

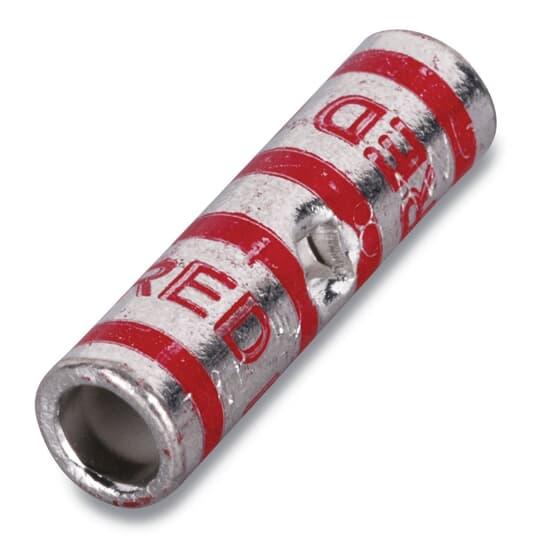

Thomas & Betts 54516 Color-Keyed Splice Connector
Image Disclaimers Message
Brand: Thomas & Betts
Thomas & Betts 54516 Color-Keyed Splice Connector
Brand: Thomas & Betts
Thomas & Betts 54516 Color-Keyed Splice Connector
Part #:54516
SKU #: 38846
$178.20/6EA
Key Features
Part #:54516
SKU #: 38846
Brand: Thomas & Betts
Conductor Size: 400, 400 kcmil
Conductor Type: Copper
Outside Diameter: 0.93, 0.93 in
Specifications: Tin Plated, Tin Plated Finish
Type: 2-Way Standard Barrel
$178.20/6EA
- 2-way connectors provide high pullout values, are easy to insulate and provide a low resistance connection of high quality and low installed cost
- Color coded for correct matching of installing die and connector
- 35 kV max voltage
Specifications
Brand: Thomas & Betts
Conductor Size: 400, 400 kcmil
Conductor Type: Copper
Outside Diameter: 0.93, 0.93 in
Specifications: Tin Plated, Tin Plated Finish
Type: 2-Way Standard Barrel
Voltage Rating: 600, 600 VAC
Color code: Blue
Country of origin: MX
Length: 2-3/4, 2-3/4 in
Material: Copper
Manufacturer Name: ABB
UNSPSC: 39121449
UPC: 00786210545165
Thomas & Betts 54516 Color-Keyed Splice Connector
Color-Keyed Splice Connector, 2-Way Standard Barrel, Copper Conductor, 400 kcmil Conductor, Die Code: 76, 600 VAC, 0.93 in OD, 2-3/4 in Length, Specifications: Tin Plated, Copper, Blue Color Code
Additional Description: TB -54516 CU TP 2WAY CONN SPLICE STND 400 BLU
Catalog Description: Copper Two-Way Connector Splice, Standard Barrel, Max 35kV, Wire Size 400 kcmil, Tin Plated, Die Code 76, Die Color Code Blue
Item Features
Item FeaturesCSA Certified|UL File No. E9809
