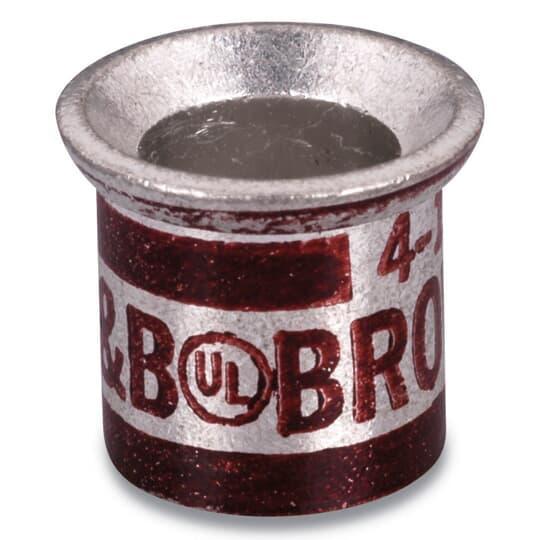

Thomas & Betts 54625-TB Color-Keyed Wire Joint
Image Disclaimers Message
Thomas & Betts 54625-TB Color-Keyed Wire Joint
Thomas & Betts 54625-TB Color-Keyed Wire Joint
Part #:54625-TB
SKU #: 2277664
Key Features
Part #:54625-TB
SKU #: 2277664
Brand: Thomas & Betts
Dimensions: 0.545 in Dia, 0.545 in Dia Base
Finish: Tin Plated
Suitable For Use With: Copper Conductor, Pigtailing, Tapping Multiple Conductor or 2-Way Splicer
Temperature Rating (Degrees F): 90, 90 deg C
Voltage Rating: 600, 600 VAC
- Offers lowest installed cost
- Form a permanent installation in minimal space, easily insulated
- Color coded to dies for positive matching and compression
- All-around compression ensures high conductivity, low resistance and high pull-out values exceeding CSA requirements
- 66040 to 87130 circular mil area
Thomas & Betts 54625-TB Color-Keyed Wire Joint
Color-Keyed Wire Joint, 600 VAC, 4 to 2 AWG, 12 AWG Wire, 0.479 in Length, 90 deg C, For Use With: Pigtailing, Tapping Multiple Conductor or 2-Way Splicer, Copper, Green, Tin Plated, 0.545 in Dia
Additional Description: TB -54625-TB CONNECTOR, COMPRESSION, CBL JT
Catalog Description: Copper Cable Joint, Wire Range Min: 4 #8 Sol or Str, Max: 1 #2 Str with 2 #12 Sol or Str, Tin Plated, Green Die
