Part Number # 54755
SKU # 2325234
54755
Thomas & Betts 54755 Color-Keyed Compression Connector
Part Number # 54755
SKU # 2325234
Thomas & Betts 54755 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 54755 |
| SKU #: | 2325234 |
| Conductor Type: | Copper |
| Dimensions: | 3/4 in L x 1-15/16 in H |
| Finish: | Plain |
| Specifications: | 2-Crimp, 76 Die Code, Blue, Plain, 76 Die Code, Blue Color, 2 Crimps |
| Tap Size: | 8 to 2/0, 8 to 2/0 AWG |
| Total Taps: | 1 |
| Type: | Large Size |
| Country of origin: | FR |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121428 |
| UPC: | 00786210547558 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 54755 Color-Keyed Compression Connector
Brand: Thomas & Betts
Part Number: 54755

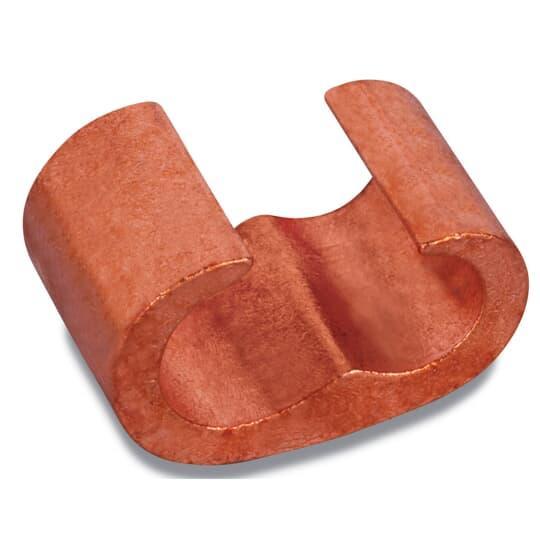

Color-Keyed C-Tap Compression Connector, Large Size, C Shape, 1 Total Taps, 4/0 to 1 AWG Main/Run, 8 to 2/0 AWG Tap, 600 VAC, Copper Conductor, Specifications: 2-Crimp, 76 Die Code, Blue, Plain, Copper, Plain, 3/4 in L x 1-15/16 in H
Additional Description: TB -54755 CU CTAP MAIN1-4/0 BRNCH2/0-8 BLU
Catalog Description: Copper C-Tap, Wire Range Main: 1-4/0 Branch 2/0-8, Plain Finish, Die Code 76, Die Color Code Blue, Number of Crimps 2
54755 Item Features
- More economical than other taps and split bolts in terms of purchase, inventory, installation time, insulation and maintenance
- Color coded for easy matching with proper die
- Barely larger than conductor insulation once installed
- Easy to work with in tight spaces
- Recommended for TBM14M, TBM15I, TBM12 and 13100A installing die tools
54755 Standards
UL E9809SKU #2325234Part Number #54755UNSPSC39121428UPC00786210547558
Image provided may only be a representation of final product and may include optional equipment
