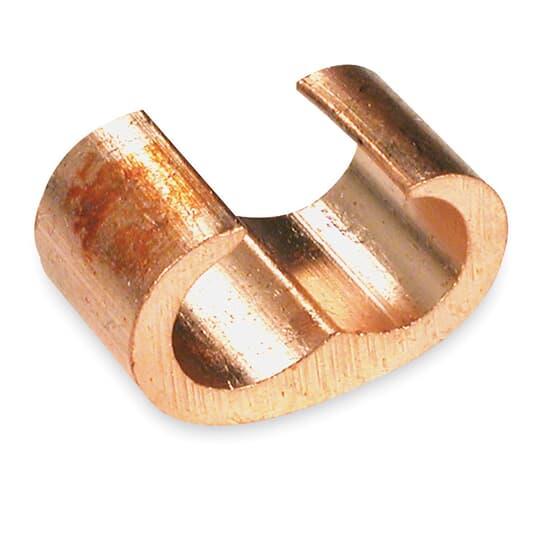

Thomas & Betts 54775 Color-Keyed Compression Connector
Thomas & Betts 54775 Color-Keyed Compression Connector
Part #:54775
SKU #: 2200922
Key Features
Part #:54775
SKU #: 2200922
Brand: Thomas & Betts
Conductor Type: Copper
Dimensions: 1-1/4 in L x 1-7/8 in H
Finish: Plain
Specifications: 115H Die Code, 2-Crimp, Plain, Yellow, 115H Die Code, Yellow Color, 2 Crimps
Tap Size: 6 AWG to 350 kcmil
- More economical than other taps and split bolts in terms of purchase, inventory, installation time, insulation and maintenance
- Color coded for easy matching with proper die
- Barely larger than conductor insulation once installed
- Easy to work with in tight spaces
- Recommended for TBM14M, TBM15I, TBM12 and 13100A installing die tools
Thomas & Betts 54775 Color-Keyed Compression Connector
Color-Keyed C-Tap Compression Connector, Large Size, C Shape, 1 Total Taps, 250 to 500 kcmil Main/Run, 6 AWG to 350 kcmil Tap, 600 VAC, Copper Conductor, Specifications: 115H Die Code, 2-Crimp, Plain, Yellow, Copper, Plain, 1-1/4 in L x 1-7/8 in H
Additional Description: TB -54775 CU CTAP MAIN250-500 BRNCH350-6 YEL
Catalog Description: Copper C-Tap, Wire Range Main: 250-500 Branch 350-6 (#6 AWG Branch Must Be Doubled), Plain Finish, Die Code 115H, Die Color Code Yellow, Number of Crimps 2
