Part Number # 54816
SKU # 2166489
54816

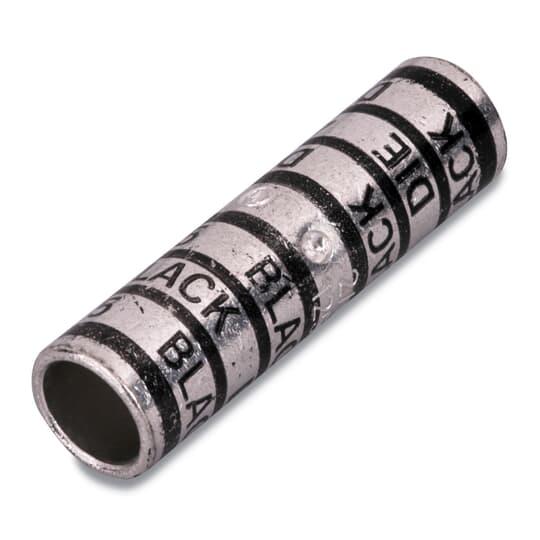

Thomas & Betts 54816 Color-Keyed Splice Connector
Part Number # 54816
SKU # 2166489
Thomas & Betts 54816 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 54816 |
| SKU #: | 2166489 |
| Conductor Size: | 400, 400 kcmil |
| Conductor Type: | Copper |
| Outside Diameter: | 0.98, 0.98 in |
| Specifications: | Tin Plated, Tin Plated Finish |
| Type: | 2-Way Long Barrel |
| Color code: | Blue |
| Country of origin: | MX |
| Length: | 3-3/4, 3-3/4 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121449 |
| UPC: | 00786210548166 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 54816 Color-Keyed Splice Connector
Brand: Thomas & Betts
Part Number: 54816
Color-Keyed Splice Connector, 2-Way Long Barrel, Copper Conductor, 400 kcmil Conductor, Die Code: 76, 600 VAC, 0.98 in OD, 3-3/4 in Length, Specifications: Tin Plated, Copper, Blue Color Code
Additional Description: TB -54816 2WAY CU SPLICE CONN LNGBRL 400 BLU
Catalog Description: Copper Two-Way Splice, Long Barrel, Max 35kV, 400 kcmil, Length 3.75 Inches, Diameter 0.98 Inch, Tin Plated, Die Code 76, Die Color Code Blue
54816 Item Features
- 2-way connector provides high pullout values, easy-to insulate and provide a low resistance connection of high quality and low installed cost
- Color coded for correct matching of installing die and connector
- 35 kV voltage rating
- 775/24 = 313 kcmil wire size flex
54816 Standards
CSA No. 4503|UL File No. E9809SKU #2166489Part Number #54816UNSPSC39121449UPC00786210548166
Image provided may only be a representation of final product and may include optional equipment
