Part Number # 54850BE
SKU # 2438982
Image provided may only be a representation of
final product and may include optional equipment
54850BE

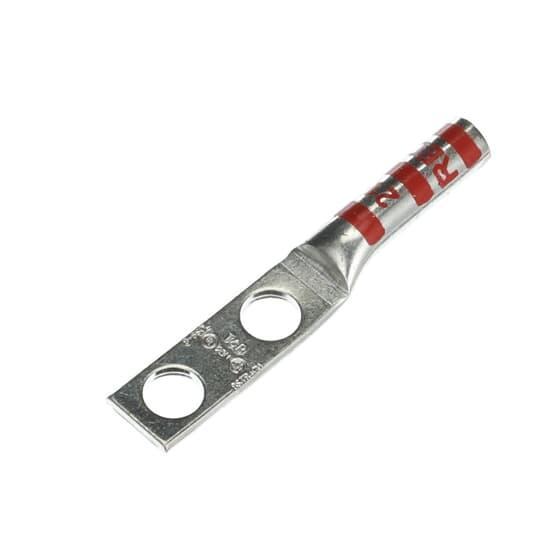

Thomas & Betts 54850BE Color-Keyed Compression Lug
Part Number # 54850BE
SKU # 2438982
Thomas & Betts 54850BE Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 54850BE |
| SKU #: | 2438982 |
| Barrel Size: | 0.26 in Dia |
| Barrel Type: | Blind End/Long |
| Conductor Size: | 8 AWG |
| Conductor Type: | Copper |
| Mounting Hole Size: | 0.281 in |
| Overall Length: | 2-1/8 in |
| Series: | 54800 |
| Specifications: | 5/8 in Stud Hole Spacing, Tin Plated |
| Tongue Size: | 1.188 in L x 0.469 in W x 0.063 in THK |
| Tongue Type: | Straight |
| Type: | 2-Hole Non-Insulated |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210897967 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 54850BE Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 54850BE
Color-Keyed® Compression Lug, 2-Hole, Series: 54800, Copper Conductor, 8 AWG Conductor, Die Code: 21, 35 kVAC, 1/4 in Stud, Straight Tongue, 1.188 in L x 0.469 in W x 0.063 in THK Tongue, 2-1/8 in Overall Length, Blind End/Long Barrel, 0.26 in Dia Barrel, 5/8 in Hole Spacing, 0.281 in Mounting Hole, Copper, Red
Additional Description: TB -54850BE CONNECTOR,CU LONG BARL
Catalog Description: Copper Two-Hole Lug, Long Barrel, Blind End, Max 35kV, Wire Size #8 AWG, 1/4 Inch Bolt Size, 5/8 Inch Hole Spacing, Tin Plated, Die Code 21, Die Color Code Red
54850BE Application
For providing a high degree of reliability in electrical wiring54850BE Item Features
- High conductivity wrought copper construction
- Tin plated finish
54850BE Standards
CSA Certified|UL File No. E9809SKU #2438982Part Number #54850BEUNSPSC39121405UPC00786210897967
