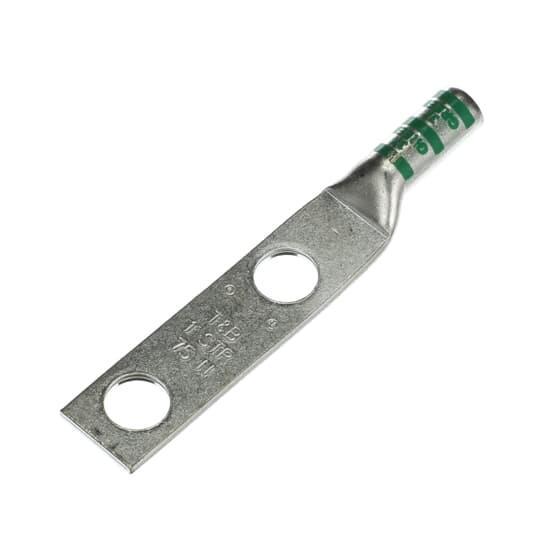

Thomas & Betts 54857BE Color-Keyed Compression Lug
Part Number # 54857BE
SKU # 2219008
Thomas & Betts 54857BE Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 54857BE |
| SKU #: | 2219008 |
| Barrel Size: | 0.47 in Dia |
| Barrel Type: | Blind End/Long |
| Conductor Size: | 1, 1 AWG |
| Conductor Type: | Copper |
| Mounting Hole Size: | 0.531, 0.531 in |
| Overall Length: | 4.43, 4.43 in |
| Series: | 54800 |
| Specifications: | 1-3/4 in Hole Spacing, 1-3/4 in Stud Hole Spacing, Tin Plated |
| Tongue Size: | 3 in L x 0.88 in W x 0.11 in THK |
| Type: | 2-Hole, 2-Hole Non-Insulated |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210199832 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 54857BE Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 54857BE
Color-Keyed Compression Lug, 2-Hole Non-Insulated, Series: 54800, Copper Conductor, 1 AWG Conductor, Die Code: 37, 35 kV, 1/2 in Stud, 3 in L x 0.88 in W x 0.11 in THK Tongue, 4.43 in Overall Length, Blind End/Long Barrel, 0.47 in Dia Barrel, Specifications: 1-3/4 in Stud Hole Spacing, Tin Plated, 0.531 in Mounting Hole, Copper, Green
Additional Description: TB -54857BE CU TP 2HL LUG LONG BRL No1 1/2B BLK
Catalog Description: Copper Two-Hole Lug, Long Barrel, Blind End Max 35kV, Wire Size #1 AWG, 1/2 Inch Bolt Size, 1-3/4 Inch Hole Spacing, Tin Plated, Die Code 37, Die Color Code Green
54857BE Application
For providing a high degree of reliability in electrical wiring54857BE Item Features
- High conductivity wrought copper construction
- Tin plated finish
54857BE Standards
UL E9809 / UL E9809SKU #2219008Part Number #54857BEUNSPSC39121405UPC00786210199832
