Part Number # 54874BEBS
SKU # 2454352

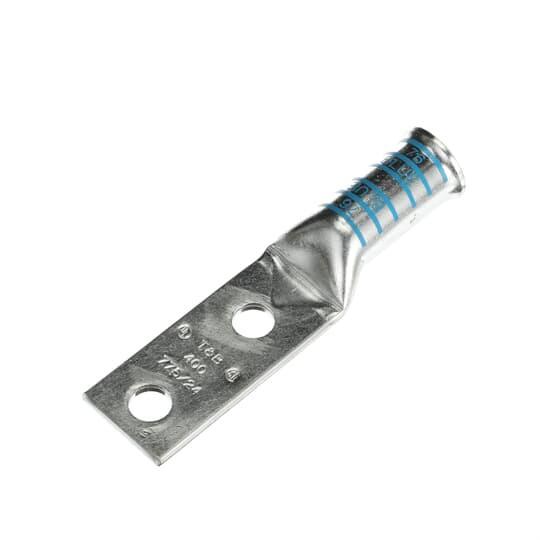

Image provided may only be a representation of
final product and may include optional equipment
54874BEBS
Thomas & Betts 54874BEBS
Part Number # 54874BEBS
SKU # 2454352
Thomas & Betts 54874BEBS Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 54874BEBS |
| SKU #: | 2454352 |
| Barrel Size: | 0.96 in Dia |
| Barrel Type: | Bell End/Blind End/Long/Standard |
| Conductor Size: | 400 kcmil |
| Conductor Type: | Copper |
| Mounting Hole Size: | 0.531 in |
| Overall Length: | 5.51 in |
| Series: | 54800 |
| Specifications: | 1-3/4 in Stud Hole Spacing, Tin Plated |
| Tongue Size: | 3 in L x 1.41 in W x 0.17 in THK |
| Tongue Type: | Straight |
| Type: | 2-Hole Non-Insulated |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210955353 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 54874BEBS
Brand: Thomas & Betts
Part Number: 54874BEBS
Color-Keyed® Compression Connector Lug, 2-Hole, Series: 54800, Copper Conductor, 400 kcmil Conductor, Die Code: 76, 35 kVAC, 1/2 in Stud, Straight Tongue, 3 in L x 1.41 in W x 0.17 in THK Tongue, 5.51 in Overall Length, Bell End/Blind End/Long/Standard Barrel, 0.96 in Dia Barrel, 1-3/4 in Hole Spacing, Tin Plated Finish, 0.531 in Mounting Hole, Copper, Blue
Additional Description: TB -54874BEBS (N) Copper Two-Hole Lug, Long Barrel - Bell Shaped End, Blind End, Max 35kV, Wire Size 400 kcmil, 1/2 Inch Bolt Size, 1-3/4 Inch Hole Spacing, Tin Plated, Die Code 76, Die Color Code Blue
Catalog Description: Copper Two-Hole Lug, Long Barrel - Bell Shaped End, Blind End, Max 35kV, Wire Size 400 kcmil, 1/2 Inch Bolt Size, 1-3/4 Inch Hole Spacing, Tin Plated, Die Code 76, Die Color Code Blue
54874BEBS Application
For providing a high degree of reliability in electrical wiring54874BEBS Item Features
- High conductivity wrought copper construction
- Connectors have colored bands or colored dots that correspond to color markings on the dies
- Color-Keyed connectors are banded by colored stripes or engraving to indicate location of die on connector for compression
- Connection by compression
- High quality connection at a low installed cost
54874BEBS Standards
CSA C22.2 File No. 65/04|UL 486A/467 File No. E9809SKU #2454352Part Number #54874BEBSUNSPSC39121405UPC00786210955353
