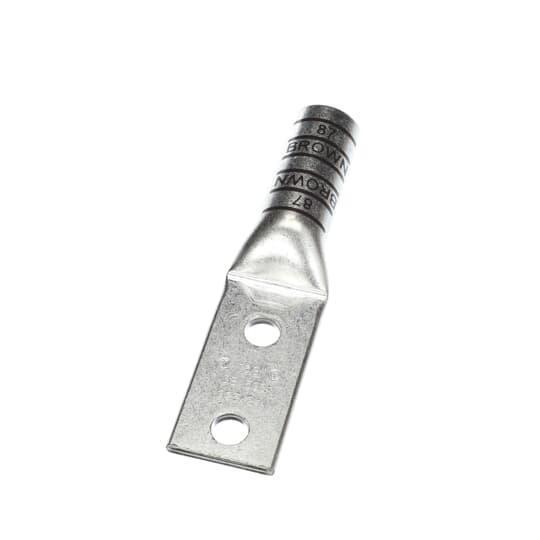

Thomas & Betts 54876BE Color-Keyed Compression Lug
Part Number # 54876BE
SKU # 38864
Thomas & Betts 54876BE Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 54876BE |
| SKU #: | 38864 |
| Barrel Size: | 1.1 in Dia |
| Barrel Type: | Blind End/Long |
| Conductor Size: | 500, 500 kcmil |
| Conductor Type: | Copper |
| Mounting Hole Size: | 0.531, 0.531 in |
| Overall Length: | 6, 6 in |
| Series: | 54800 |
| Specifications: | 1-3/4 in Hole Spacing, 1-3/4 in Stud Hole Spacing, Tin Plated |
| Tongue Size: | 3 in L x 1.61 in W x 0.22 in THK |
| Tongue Type: | Straight |
| Type: | 2-Hole, 2-Hole Non-Insulated |
| Color: | Brown |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210882734 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 54876BE Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 54876BE
Color-Keyed Compression Lug, 2-Hole Non-Insulated, Series: 54800, Copper Conductor, 500 kcmil Conductor, Die Code: 87, 35 kV, 1/2 in Stud, Straight Tongue, 3 in L x 1.61 in W x 0.22 in THK Tongue, 6 in Overall Length, Blind End/Long Barrel, 1.1 in Dia Barrel, Specifications: 1-3/4 in Stud Hole Spacing, Tin Plated, 0.531 in Mounting Hole, Copper, Brown
Additional Description: TB -54876BE CU TP 2HL LUG LONGBRL 500 1/2B BRN
Catalog Description: Copper Two-Hole Lug, Long Barrel, Blind End, Max 35kV, Wire Size 500 kcmil, 1/2 Inch Bolt Size, 1-3/4 Inch Hole Spacing, Tin Plated, Die Code 87, Die Color Code Brown
54876BE Application
For providing a high degree of reliability in electrical wiring54876BE Item Features
- Connectors have colored bands or colored dots that correspond to color markings on the dies
- Color-Keyed connectors are banded by colored stripes or engraving to indicate location of die on connector for compression
- Connection by compression
- High quality connection at a low installed cost
- High conductivity wrought copper construction
- Tin plated finish
54876BE Standards
CSA C22.2 File No. 65/04|UL 486A/467 File No. E9809SKU #38864Part Number #54876BEUNSPSC39121405UPC00786210882734
