Part Number # 54905BE06
SKU # 2291229
Image Disclaimers Message
54905BE06

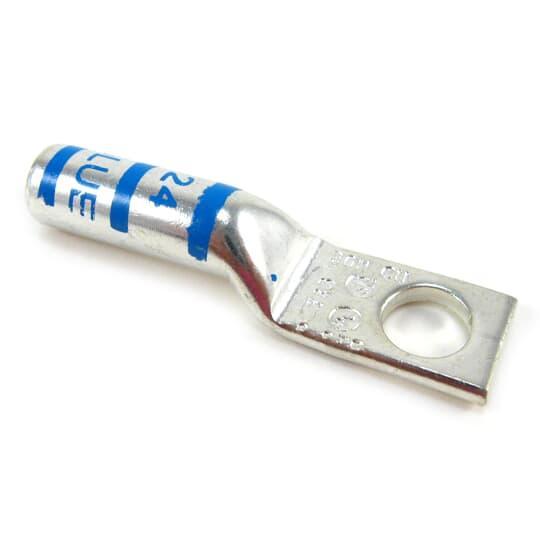

Thomas & Betts 54905BE06 Color-Keyed Compression Lug
Part Number # 54905BE06
SKU # 2291229
Thomas & Betts 54905BE06 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 54905BE06 |
| SKU #: | 2291229 |
| Barrel Size: | 0.3 in Dia |
| Barrel Type: | Blind End/Long |
| Conductor Size: | 6, 6 AWG |
| Conductor Type: | Copper/Stranded |
| Mounting Hole Size: | 0.406, 0.406 in |
| Overall Length: | 1.65, 1.65 in |
| Series: | 54900 |
| Specifications: | 1/4 in Center of Hole to Tongue End, Tin Plated |
| Tongue Size: | 0.65 in L x 0.44 in W x 0.08 in THK |
| Tongue Type: | Straight |
| Type: | 1-Hole, 1-Hole Non-Insulated |
| Color: | Blue |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210715124 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 54905BE06 Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 54905BE06
Color-Keyed Compression Lug, 1-Hole Non-Insulated, Series: 54900, Copper/Stranded Conductor, 6 AWG Conductor, Die Code: 24, 35 kV, 3/8 in Stud, Straight Tongue, 0.65 in L x 0.44 in W x 0.08 in THK Tongue, 1.65 in Overall Length, Blind End/Long Barrel, 0.3 in Dia Barrel, Specifications: 1/4 in Center of Hole to Tongue End, Tin Plated, 0.406 in Mounting Hole, Copper, Blue
Additional Description: TB -54905BE06 CU TP 1HL LUG LONG BRL No6 3/8B BLU
Catalog Description: Copper One-Hole Lug, Long Barrel, Blind End, Max 35kV, Wire Size #6 AWG, 3/8 Inch Bolt Size, Tin Plated, Die Code 24, Die Color Code Blue
54905BE06 Application
For providing a high degree of reliability in electrical wiring54905BE06 Item Features
- Connectors have colored bands or colored dots that correspond to color markings on the dies
- Color-Keyed connectors are banded by colored stripes or engraving to indicate location of die on connector for compression
- Connection by compression
- High quality connection at a low installed cost
- High conductivity wrought copper construction
- 1/4 in hole center to end
- Tin plated finish
54905BE06 Standards
CSA C22.2 File No. 65/04|UL 486A/467 File No. E9809SKU #2291229Part Number #54905BE06UNSPSC39121405UPC00786210715124
