Part Number # 54922BEUB
SKU # 2402767
Image Disclaimers Message
Brand: Thomas & Betts
54922BEUB

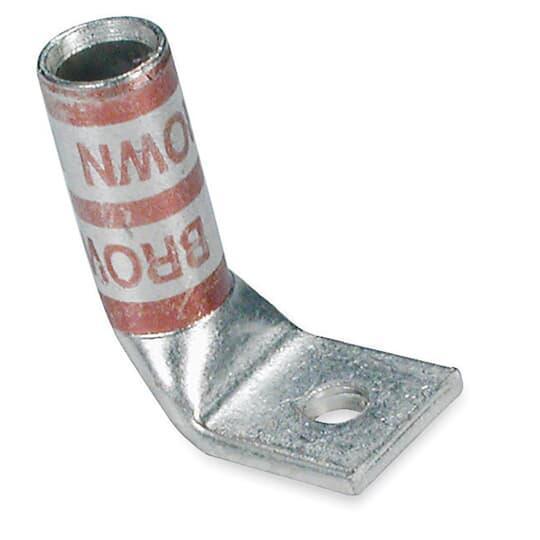

Thomas & Betts 54922BEUB Color-Keyed Compression Lug
Part Number # 54922BEUB
SKU # 2402767
$196.28 / 2Each
Typical price:$263.02 / Each
Thomas & Betts 54922BEUB Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 54922BEUB |
| SKU #: | 2402767 |
| Barrel Size: | 1.33 in Dia |
| Barrel Type: | Blind End/Long |
| Conductor Size: | 750 kcmil |
| Conductor Type: | Stranded Copper |
| Series: | 54900 |
| Specifications: | 1/2 in Center of Hole to Tongue End, Tin Plated |
| Tongue Size: | 1.25 in L x 1.94 in W x 0.27 in THK |
| Tongue Type: | 90 deg/Long |
| Type: | 1-Hole Non-Insulated |
| Color: | Black |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210907529 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$196.28 / 2Each
Typical price:$263.02 / Each
Quantity:
- Color-Keyed Compression Lug, 1-Hole Non-Insulated, Series: 54900, Stranded Copper Conductor, 750 kcmil Conductor, Die Code: 106, 600 V AC to 35 kV, 1/2 in Stud, 90 deg/Long Tongue, 1.25 in L x 1.94 in W x 0.27 in THK Tongue, Blind End/Long Barrel, 1.33 in Dia Barrel, 1/2 in Center of Hole to Tongue End, Tin Plated, Copper, Black
54922BEUB Application
For use to provide a high degree of reliability in electrical wiring54922BEUB Item Features
- Connectors have colored bands or colored dots that correspond to color markings on the dies
- Thomas & Betts Dies offer inspection capability
- Color-Keyed Connectors are banded by colored stripes or engraving to indicate location of die on connector for compression
- Connection by Compression
- High quality connection at a low installed cost
- High conductivity wrought copper construction
- Stranded copper conductor
- 1/2 in Hole Center to End
54922BEUB Standards
CSA C22.2 File No. 65/04|UL 486A/467 File No. E9809SKU #2402767Part Number #54922BEUBUNSPSC39121405UPC00786210907529
