Part Number # 54949BE
SKU # 2459819
54949BE
Thomas & Betts 54949BE
Part Number # 54949BE
SKU # 2459819
$63.00 / 5Each
Typical price:$67.01 / Each
Thomas & Betts 54949BE Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 54949BE |
| SKU #: | 2459819 |
| Barrel Size: | 0.52 in Dia |
| Barrel Type: | Blind End/Long |
| Conductor Size: | 1/0 AWG |
| Conductor Type: | Copper/Stranded |
| Mounting Hole Size: | 0.344 in |
| Overall Length: | 2.18 in |
| Series: | 54900 |
| Specifications: | 3/8 in Center of Hole to Tongue End, Tin Plated |
| Tongue Size: | 0.88 in L x 0.68 in W x 0.13 in THK |
| Tongue Type: | Straight |
| Type: | 1-Hole Non-Insulated |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210190273 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$63.00 / 5Each
Typical price:$67.01 / Each
Quantity:
- Color-Keyed Compression Lug, 1-Hole Non-Insulated, Series: 54900, Copper/Stranded Conductor, 1/0 AWG Conductor, Die Code: 42, 35 kV, 5/16 in Stud, Straight Tongue, 0.88 in L x 0.68 in W x 0.13 in THK Tongue, 2.18 in Overall Length, Blind End/Long Barrel, 0.52 in Dia Barrel, Specifications: 3/8 in Center of Hole to Tongue End, Tin Plated, 0.344 in Mounting Hole, Copper, Pink
54949BE Application
For providing a high degree of reliability in electrical wiring54949BE Item Features
- Connectors have colored bands or colored dots that correspond to color markings on the dies
- Color-Keyed connectors are banded by colored stripes or engraving to indicate location of die on connector for compression
- Connection by compression
- High quality connection at a low installed cost
- High conductivity wrought copper construction
- 3/8 in hole center to end
- Tin plated finish
54949BE Standards
UL E9809 / UL E9809SKU #2459819Part Number #54949BEUNSPSC39121405UPC00786210190273

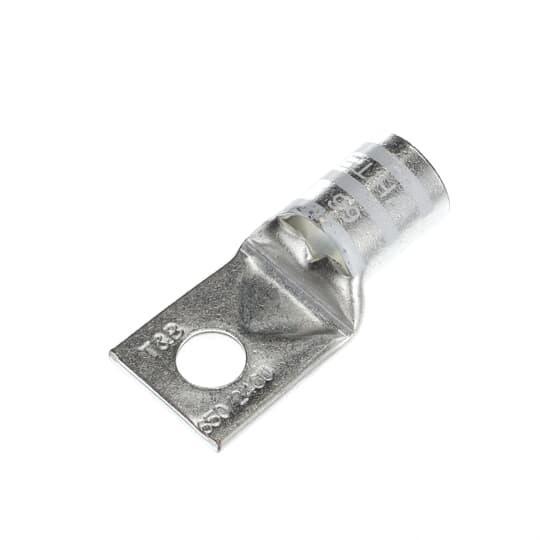

Image provided may only be a representation of final product and may include optional equipment
