54950BE

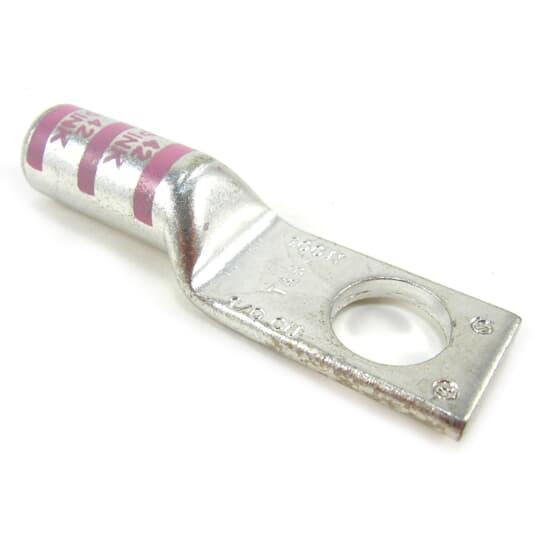

Thomas & Betts 54950BE Color-Keyed Compression Lug
Part Number # 54950BE
SKU # 2208797
Thomas & Betts 54950BE Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 54950BE |
| SKU #: | 2208797 |
| Barrel Size: | 0.52 in Dia |
| Barrel Type: | Blind End/Long |
| Conductor Size: | 1/0, 1/0 AWG |
| Conductor Type: | Copper/Stranded |
| Mounting Hole Size: | 0.531, 0.531 in |
| Overall Length: | 2.55, 2.55 in |
| Series: | 54900 |
| Specifications: | 1/2 in Center of Hole to Tongue End, Tin Plated |
| Tongue Size: | 1.25 in L x 0.75 in W x 0.13 in THK |
| Tongue Type: | Straight |
| Type: | 1-Hole, 1-Hole Non-Insulated |
| Color: | Pink |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210190280 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 54950BE Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 54950BE
Color-Keyed Compression Lug, 1-Hole Non-Insulated, Series: 54900, Copper/Stranded Conductor, 1/0 AWG Conductor, Die Code: 42, 35 kV, 1/2 in Stud, Straight Tongue, 1.25 in L x 0.75 in W x 0.13 in THK Tongue, 2.55 in Overall Length, Blind End/Long Barrel, 0.52 in Dia Barrel, Specifications: 1/2 in Center of Hole to Tongue End, Tin Plated, 0.531 in Mounting Hole, Copper, Pink
Additional Description: TB -54950BE CU TP 1HL LUG LONG BRL 1/0 1/2B PNK
Catalog Description: Copper One-Hole Lug, Long Barrel, Blind End, Max 35kV, Wire Size 1/0 AWG, 1/2 Inch Bolt Size, Tin Plated, Die Code 42, Die Color Code Pink
54950BE Application
For providing a high degree of reliability in electrical wiring54950BE Item Features
- Connectors have colored bands or colored dots that correspond to color markings on the dies
- Color-Keyed connectors are banded by colored stripes or engraving to indicate location of die on connector for compression
- Connection by compression
- High quality connection at a low installed cost
- High conductivity wrought copper construction
- 1/2 in hole center to end
- Tin plated finish
54950BE Standards
CSA C22.2 File No. 65/04|UL 486A/467 File No. E9809SKU #2208797Part Number #54950BEUNSPSC39121405UPC00786210190280
