Part Number # 58165BS
SKU # 2361349
Image Disclaimers Message
Brand: Thomas & Betts
58165BS

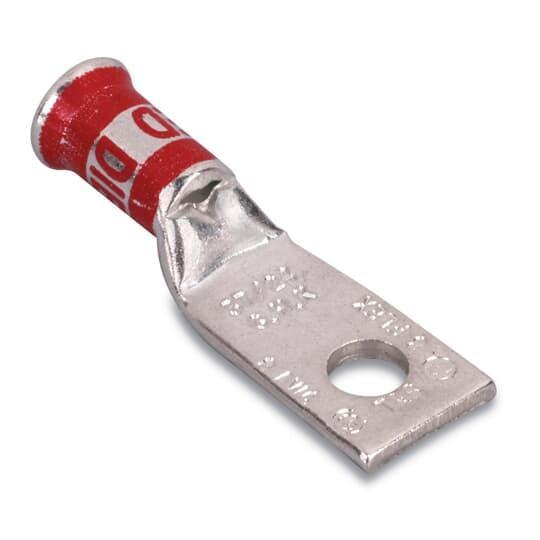

Thomas & Betts 58165BS Color-Keyed Compression Connector Lug
Part Number # 58165BS
SKU # 2361349
$869.14 / 10Each
Thomas & Betts 58165BS Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 58165BS |
| SKU #: | 2361349 |
| Barrel Size: | 0.79 in Dia |
| Barrel Type: | Bell End/Standard |
| Conductor Size: | 4/0, 4/0 AWG |
| Conductor Type: | Copper, Flexible Copper |
| Mounting Hole Size: | 0.531, 0.531 in |
| Overall Length: | 2-15/32, 2-15/32 in |
| Series: | 58100 |
| Specifications: | NEMA 570/2B Enclosure Rating, Tin Plated, Tin Plated Finish |
| Tongue Size: | 1-1/8 in L x 1-1/4 in W x 3/16 in THK |
| Tongue Type: | Straight |
| Type: | 1-Hole, 1-Hole Non-Insulated |
| Color: | Yellow |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210954608 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$869.14 / 10Each
Quantity:
- Color-Keyed Compression Lug Connector, 1-Hole Non-Insulated, Series: 58100, Flexible Copper Conductor, 4/0 AWG Conductor, Die Code: 62, 35 kV, 1/2 in Stud, Straight Tongue, 1-1/8 in L x 1-1/4 in W x 3/16 in THK Tongue, 2-15/32 in Overall Length, Bell End/Standard Barrel, 0.79 in Dia Barrel, Specifications: NEMA 570/2B Enclosure Rating, Tin Plated, 0.531 in Mounting Hole, Copper, Yellow
58165BS Application
For providing a high degree of reliability in electrical wiring58165BS Item Features
- High conductivity wrought copper construction
- Connectors have colored bands or colored dots that correspond to color markings on the dies
- Color-Keyed connectors are banded by colored stripes or engraving to indicate location of die on connector for compression
- Connection by compression
- High quality connection at a low installed cost
- NEMA 570/2B
58165BS Standards
CSA C22.2 File No. 65/04|UL 486A/467 File No. E9809SKU #2361349Part Number #58165BSUNSPSC39121405UPC00786210954608
