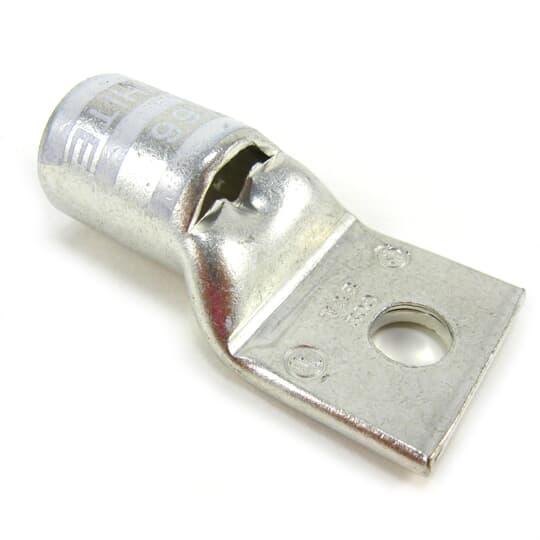

Thomas & Betts 58168 Color-Keyed Compression Lug
Part Number # 58168
SKU # 284938
Thomas & Betts 58168 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 58168 |
| SKU #: | 284938 |
| Barrel Size: | 0.85 in Dia |
| Barrel Type: | Standard |
| Conductor Size: | 250, 250 kcmil |
| Conductor Type: | Copper/Flexible, Flexible Copper |
| Mounting Hole Size: | 0.531, 0.531 in |
| Overall Length: | 2.7, 2.7 in |
| Series: | 58100 |
| Specifications: | Tin Plated |
| Tongue Size: | 1.25 in L x 1.25 in W x 0.15 in THK |
| Tongue Type: | Straight |
| Type: | 1-Hole, 1-Hole Non-Insulated |
| Color: | White |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210581682 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 58168 Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 58168
Color-Keyed Compression Lug, 1-Hole Non-Insulated, Series: 58100, Flexible Copper Conductor, 250 kcmil Conductor, Die Code: 66, 35 kV, 1/2 in Stud, Straight Tongue, 1.25 in L x 1.25 in W x 0.15 in THK Tongue, 2.7 in Overall Length, Standard Barrel, 0.85 in Dia Barrel, Specifications: Tin Plated, 0.531 in Mounting Hole, Copper, White
Additional Description: TB -58168 250 WELD CU STD. BRL. 1 HOLE 1/2 B 1/2""
Catalog Description: Copper One-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size 250 Flex, 1/2 Inch Bolt Size, Tin Plated, Die Code 66, Die Color Code White
58168 Application
For providing a high degree of reliability in electrical wiring58168 Item Features
- Peep hole
- High conductivity wrought copper construction
- Tin plated finish
58168 Standards
CSA Certified|UL File No. E9809SKU #284938Part Number #58168UNSPSC39121405UPC00786210581682
